TMBH 5/230V, SKF, Portable induction heater (230V version)

Portable, Induction heater, 50/60Hz, 2A

Brand SKF
Mfr Part No. TMBH 5/230V
Acorn Code TMBH5/230V-SKF
HS Code 8482 99 00 90
COO Netherlands (NL)


in stock

A light and compact solution for bearing heating

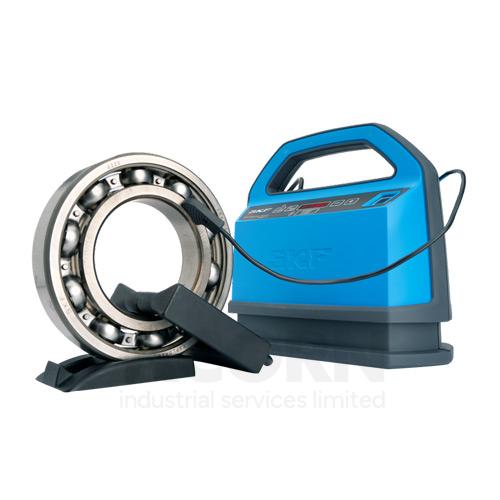

The TMBH 5 portable induction heater is used to heat and mount roller bearings onto a shaft with an interference fit. It is versatile enough to be used in a range of situations - including at a work bench, on the factory floor or out in the field. Typical applications include maintenance and service jobs on assets such as gearboxes, pumps, fans and blowers.

The device features near-silent performance and weighs only 3 kg, thanks mainly to the use of sophisticated medium-frequency technology. It features an induction clamp containing internal coils. Current in the coils generates a fluctuating magnetic field. This induces currents in the component, producing heat. Because this heat is generated within the component, not the clamp, the process is very efficient.

The heater generates a temperature difference between bearing and shaft. This causes the bearing to expand, so that no force is needed during installation. It can also heat other ring-shaped, metallic components.

The unit's intuitive interface allows the user to select either Temperature Mode or Time Mode. An LED indicator shows when the TMBH 5 is in operation - as it hardly makes any noise.

TMBH 5 Benefits and features:
• Silent in operation
• Portable, compact and lightweight (3 kg)
• Uses advanced medium-frequency technology
• Choice of power settings
• Accessories fit into convenient side compartments
• No need to choose separate yoke for each component
• Intuitive control panel
• Handles bearings up to 5 kg in weight


Product Attributes
Manufacturer Product Code TMBH 5/230V
Basic Product Description Portable induction heater (230V version)
UOM Each
Total weight (incl. yokes) 3
Heater Type Portable
Temerature Control 40-200 °C (104-392 °F)
Power Supply 50/60Hz
Maximum Power Consumption 2A
Demagnetisation The heater does not magnetise
Voltage and frequency  230 V ±10%, 50/60Hz
Voltage Classification V
Bore Diameter Range (mm) 20-100mm
Max. Bearing Width (mm) 50mm (2.0in)
