Extra large, bearing heater, 400-460 V/50-60Hz, 20-23 kVA, EAN code: 07316575487645
| Brand | SKF |
|---|---|
| Mfr Part No. | TIH L77MB/MV |
| Acorn Code | TIHL77MB/MV-SKF |
| HS Code | 8514 40 00 00 |
| COO | XXX |

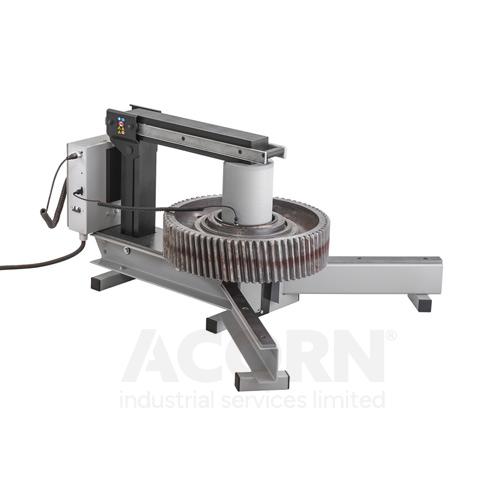

The SKF TIH L77MB is a very large bearing heater and designed for the fast heating of heavy components such as rings, gears, couplings or similar ring-shaped metal workpieces. The TIH L77MB is characterised by its extended operating area that allows very large workpiece to be heated around the coil. The sliding yoke supports an ergonomic workflow and the heater can easily be transported by forklift. The TIH L77MB can heat large components weighing up to 600 kg.
• Standard sliding yoke for ergonomic operation
• Special design for fast heating of large gears, wheels, rings, couplings and similar workpieces
• Easy and safe to use with automatic temperature control or time controlled heating
• Automatic demagnetization reduces risk of bearing contamination
• Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
| Manufacturer Product Code | TIH L77MB/MV |
|---|---|
| Basic Product Description | bearing heater TIH L77MB (440V version) |
| UOM | Each |
| Width (mm) | 1320 |
| Length (mm) | 600 |
| Height (mm) | 1150 |
| Total weight (incl. yokes) | 415 |
| Heater Type | Extra large |
| Temperature Range | 0°C to 250°C (32°F to 482°F) |
| Power Supply | 400-460 V/50-60Hz |
| Maximum Power Consumption | 20-23 kVA |
| Demagnetisation | <2 A/cm |
| Voltage and frequency | 400-460 V/50-60Hz |
| Voltage Classification | MV |
| Coil Diameter | 175mm |
| Standard yokes (included) for minimal bore diameter | 1 x 150mm |
| Max. Bearing Weight (Kg) | 600 Kg |
| Bore Diameter Range (mm) | 150-800mm |
| Operating Area (w) x (h) | 765 x 792mm |
| EAN code | 07316575487645 |
