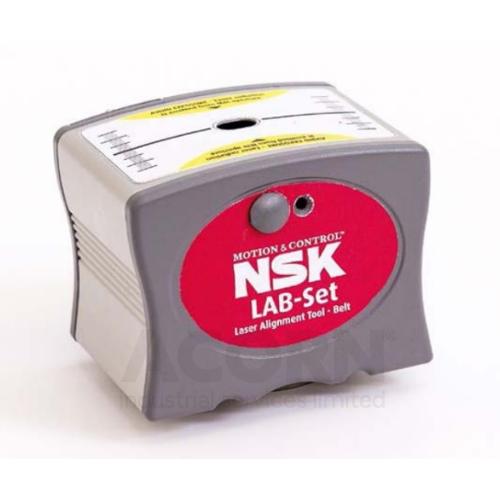

LAB-SET, NSK, Laser Belt Alignment Tool

Brand NSK
Mfr Part No. LAB-SET
Acorn Code LAB-SET-NSK
HS Code 8482 10 90 90

With the LAB-Set, you are never in doubt of whether your belt transmissions are aligned or not. By using the V-grooves as reference, you will achieve precise alignment which reduces belt wear, bearing failures and vibration.
NSK's laser alignment solution LAB-Set contains two line laser transmitters, making alignment far more accurate than single laser head types. Each set is equipped with a range of magnetic spring loaded guides which snap into the pulley grooves. This makes it very easy to mount the laser units on the pulley.


Product Attributes
Manufacturer Product Code LAB-SET
Basic Product Description Laser Belt Alignment Tool
UOM Each
Weight (Kg) 2
Laser Type Red laser diode
Mounting Magnetic, groove mounted
Battery 2 x LR03 (AAA) 1.5v Per Unit
Laser power <1 Mw
Measurement distance 50 mm to 6 m
Measurement accuracy angular Better than 0.02° at 2 m
Measurement accuracy offset Better than 0.5 mm
Housing Material Extruded Aluminium (molded ABS Cover
