Tachometer, EAN code: 7316575851941
| Brand | SKF |
|---|---|
| Mfr Part No. | TKRT 10 |
| Acorn Code | TKRT10-SKF |
| HS Code | 8482 99 00 90 |
| COO | China (CN) |

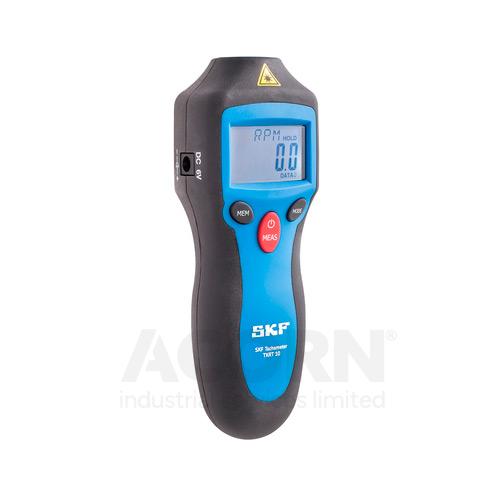

The SKF TKRT 10 is a fast and accurate tachometer utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, it is a versatile instrument and suits many different applications.
• Laser/contact measuring system
• Wide speed measurement range
• Multiple measurement modes
• Large, back-lit LCD display
• Angular range of ±45° for easy measuring
• Up to 10 readings stored for reference
• Includes basic set of contact adaptors
• Supplied in a handy toolcase for easy storage
| Manufacturer Product Code | TKRT 10 |
|---|---|
| Basic Product Description | Fast and accurate tachometer |
| UOM | Each |
| Width (mm) | 260 |
| Depth (mm) | 85 |
| Height (mm) | 180 |
| Weight (Kg) | 0.16 |
| Display | 5 digit LCD backlit display |
| Displayed resolution | 0,1 r/min up to 10 000 r/min, otherwise 1 r/min |
| Memory | 10 readings memories |
| Low battery indicator | Yes |
| Auto switch off | After 15 seconds |
| Measurement - Optical modes | r/min, hertz |
| Measurement - Contact modes | r/min, metres, inches, yards, feet, per min, hertz |
| Measurement - Count modes | total revs, metres, feet, yards |
| Optical Measurement - Rotational Speed range | 3 to 99 999 r/min |
| Optical Measurement - Accuracy | ±0,05% of reading ±1 digit |
| Optical Measurement - Measuring distance | 50 to 500 mm (1.9 to 19.7 in.) |
| Optical Measurement - Angle of operation | ±45˚ |
| Optical Measurement - Laser sensor | 1x built-in class 2 laser |
| Contact Measurement - Rotational speed range | 2 to 20 000 r/min |
| IP Rating | IP 40 |
| Power Source | 1x 9 V alkaline type IEC 6F22 |
| Contact Measurement - Accuracy | ±1% of reading ±1 digit |
| Operation time | 12 |
| Product type | Tachometer |
| EAN code | 7316575851941 |
