TKRS 41, SKF, High performance stroboscope with laser tachometer and trigger input

Stroboscope, Multi-line backlight LCD

SKF Authorised distributor logo
Brand SKF
Mfr Part No. TKRS 41
Acorn Code TKRS41-SKF
HS Code 8482 99 00 90
COO XXX

$3,328.00

+

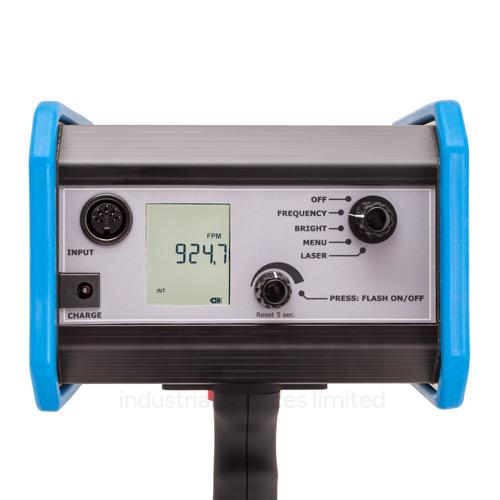

The SKF Stroboscope TKRS 41 is a high performance stroboscope with 118 ultra-bright LEDs for visual inspection of running machines. The instrument offers extreme brightness in a portable housing. The TRKS 41 features a built-in laser tachometer and input channel to trigger the flash. The instrument can be operated using the built-in rechargable battery or continuously using the supplied power adapter.

• Extreme luminescence with 118 ultra-bright LEDs
• Portable operation with built-in rechargeable battery
• Continuous operation for long term inspection with power adapter
• Flash synchronization from laser tachometer or trigger input
• Supplied in a sturdy carrying case with charger, connector set, trigger plug and reflective tapes included

Specification

Product Attributes
Manufacturer Product Code TKRS 41
Basic Product Description High performance stroboscope with laser tachometer and trigger input
id (mm) 150
od (mm) 130
Width (mm) 270
Total weight (including case) 2.5
Light power 8000 lux
at 1° flash duration and 0.3 m distance
Brightness (flash duration) adjustable, 0.025° - 3.0°
Power source internal Li-ion battery (rechargable);
continuous operation with power adapter (included)
Accuracy ± 0.02% (± 1 digit / ± 0.025 µs whichever is greater)
Laser speed measurement Yes
Phase shift Yes with slow motion function
Display Multi-line backlight LCD
Power adapter and charger 110 - 230 V, 50/60 Hz, EU/US/UK/AUS plugs
External trigger range 0 to 300 000 f/min
External trigger connection Plug: 5-pin plug DIN 41524 (included);
Input: 3 - 30 V, max. 5 mA, potentialfree optocoupler
Signal modification Edge selection;
Multiplier;
Divider;
Delay
Product type Stroboscope
EAN-Code 7316577885692
