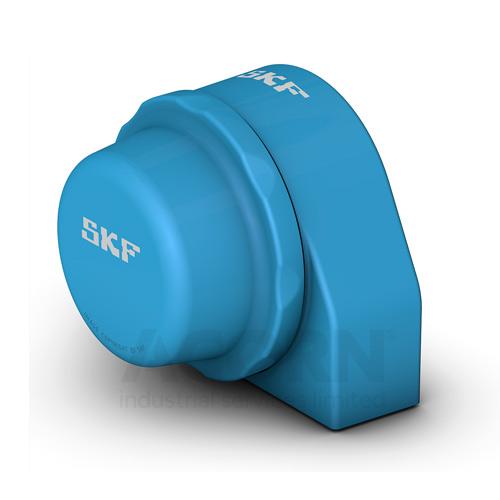

P2BTC 30M-CPSS-DFH, SKF, Foodline Short base pillow block ball bearing unit with narrow inner ring

Metric, Bearing unit, Stainless Steel, Seal on both sides and flinger on one side, Contact, gutter, Set screw locking, Food Safe Grease

SKF
Brand SKF
Mfr Part No. P2BTC 30M-CPSS-DFH
Acorn Code P2BTC30M-CPSS-DFH-SKF
HS Code 8483 20 00 00
COO Italy (IT)

$127.43

+

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. It has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has a narrow inner ring and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

• Designed for a constant and alternating rotation
• Excellent corrosion resistance
• Lightweight
• Recyclable

Specification

Product Attributes
Manufacturer Product Code P2BTC 30M-CPSS-DFH
Basic Product Description Foodline Short base pillow block ball bearing unit with narrow inner ring
Measurement Metric
UOM Each
id (mm) 30
Width (mm) 84
Length (mm) 102
Weight (Kg) 0.52
Lubrication Food Safe Grease
Seals Seal on both sides and flinger on one side
Sealing type Contact, gutter
Locking Style Set screw locking
Bearing Material Stainless Steel
Housing Material Composite (Blue)
Bearing/Insert reference YAS 206-2LP1W/SS
Housing reference P2BTC 506MM
Dynamic load 16.3
Static load 11.2
Max Speed 3800
