SA 40 TXE-2LS, SKF, Rod end

Metric, Rod end, Steel/PTFE Fabric, Male connection, Right-hand thread, Maintenance free, EAN code: 07316572082102

Brand SKF
Mfr Part No. SA 40 TXE-2LS
Acorn Code SA40TXE-2LS-SKF
HS Code 8483 30 80 90
COO Germany (DE)

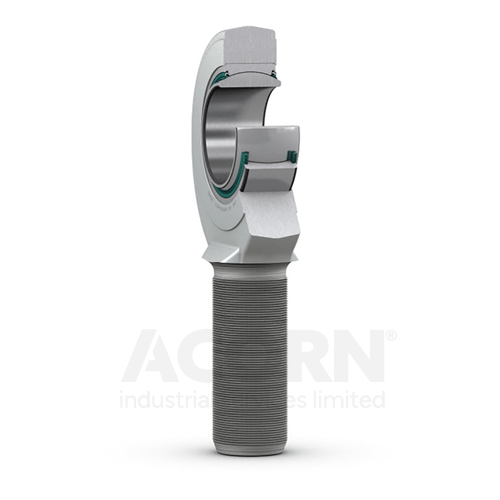

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free.

• Long service life
• Maintenance-free
• Suitable for very heavy, constant direction loads
• Low coefficient of friction
• Simple and ready-to-mount


Product Attributes
Manufacturer Product Code SA 40 TXE-2LS
Basic Product Description Rod end
Measurement Metric
UOM Each
Bore diameter, bearing inner ring 40
Centre height, housing (from end of shank) 145
Outside diameter, housing eye 94
Thread (mm) M 42x3
Weight (Kg) 1.95
Lubrication Maintenance free
Sealing solution Triple-lip seals
4 Male connection
Thread (L/R) Right-hand thread
Tile Angle Tilt angle: 6°
Bearing Material / Liner Steel/PTFE Fabric
Housing Material Steel
Basic dynamic load rating 280 kN
Basic static load rating 140 kN
EAN code 07316572082102
