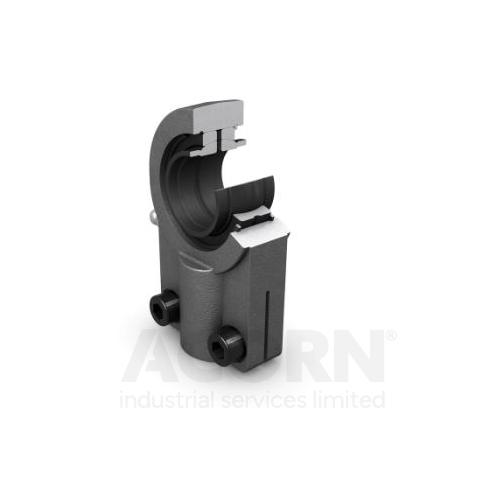

SIQG 50 ES, SKF, Rod end, requires maintenance, female thread with clamping screws

Metric, Rod end, Steel/Steel, Female connection, Right-hand thread, M42 x 2, Requires maintenance, EAN code: 07316577022554

Brand SKF
Mfr Part No. SIQG 50 ES
Acorn Code SIQG50ES-SKF
HS Code 8483 30 80 90
COO Germany (DE)

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The inner ring is extended on both sides. The bearing requires maintenance and can be relubricated via grease fitting in the housing and for sizes 16 and larger also via the shaft.

• Easy to relubricate
• Suitable for heavy static, alternating or impact loads
• Simple and ready-to-mount
• Slotted shank with clamping screws
• Suitable for hydraulic cylinders
• Bearing can be exchanged


Product Attributes
Manufacturer Product Code SIQG 50 ES
Basic Product Description Rod end, requires maintenance, female thread with clamping screws
Measurement Metric
UOM Each
Bore diameter, bearing inner ring (mm) 50
od (mm) 120
Width (mm) 110
Thread (mm) M42 x 2
Width, bearing inner ring (mm) 50
Width, housing eye (mm) 42
Weight (Kg) 3.766
Lubrication Requires maintenance
Features Female connection
Thread (L/R) Right-hand thread
Sealing solution Without seals
Housing material Cast iron
Bearing Material Steel/Steel
Basic dynamic load rating 156 kN
Basic static load rating 270 kN
EAN code 07316577022554
