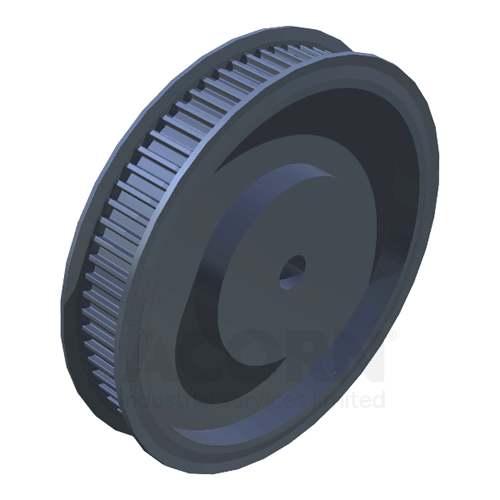

PHP 16XL037RSB, SKF, Classical timing pulley, pilot bore

Imperial, Pilot bore timing pulleys, 16, Pilot bore, 6, EAN code: 07316572603840

SKF
Brand SKF
Mfr Part No. PHP 16XL037RSB
Acorn Code 16XL037RSB-SKF
HS Code 8483 50 20 90
COO China (CN)

Classical timing pulleys are designed to be used with classical timing belts in synchronous belt drives.

The pulleys are prepared with a pilot bore, which can be machined to the desired dimensions before mounting.

• Manufactured according to international standards
• Phosphate-coated for corrosion resistance
• Tooth profiles interchangeable with ISO/DIN and RMA standards
• Superior quality can enhance belt life and reduce total cost of ownership of the machinery

Specification

Product Attributes
Manufacturer Product Code PHP 16XL037RSB
Basic Product Description Classical timing pulley, pilot bore
Measurement Imperial
UOM Each
Pitch Diameter (mm) 25.87
Outer Diameter (mm) 25.37
Width (mm) 19.8
To suit a 9mm wide belt (mm) 9.53
Hub diameter 17.5
Weight (Kg) 0.05
No. of Teeth 16
Bore Type Pilot bore
Max. bore (mm) 12
Min. bore (mm) 6
Variance 1F
Section XL
Material Cast Iron
EAN 07316572603840
