Grease, Cartridge, > 170 °C, 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: + 50 max. (325 max.), 50 hours at 80 °C, 10-1 mm: + 70 max. (350 max), EAN code: 7316579290234
| Brand | SKF |
|---|---|
| Mfr Part No. | LGGB 2/0.4 |
| Acorn Code | LGGB2/0.4-SKF |
| HS Code | 2710 12 15 00 |
| COO | Germany (DE) |

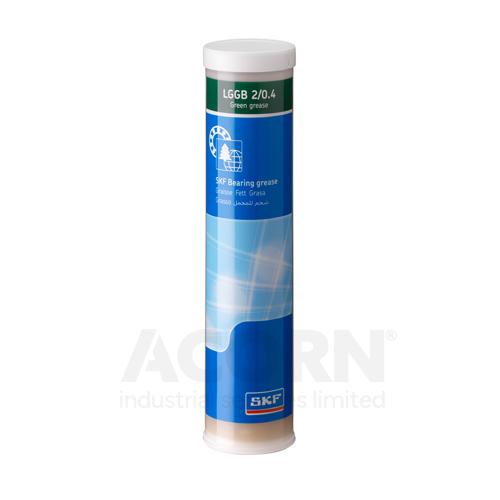

SKF LGGB 2 is a biodegradable, low toxicity, synthetic ester oil based grease, using a lithium-calcium thickener. Its special formulation makes it most suitable for applications where environmental contamination is a concern.
Features & benefits:
• Good performance in applications with steel-on-steel spherical plain bearings, ball bearings and roller bearings
• Good low temperature start-up performance
• Good corrosion inhibiting properties
• Suitable for medium to high loads
Typical applications:
• Agricultural and forestry equipment
• Construction and earthmoving equipment
• Mining and conveying equipment
• Water treatment and irrigation
• Locks, dams, bridges
• Linkages, rod ends
| Manufacturer Product Code | LGGB 2/0.4 |
|---|---|
| Basic Product Description | Multi-purpose green biodegradable grease, cartridge |
| Size (Per Unit) | 420 ml |
| UOM | Each |
| Base Oil Viscosity cSt @ 40°C | 110 |
| Weight (Kg) | 0.4 |
| Dropping point | > 170 °C |
| Penetration DIN ISO 2137 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: + 50 max. (325 max.) |
| Roll stability ASTM D1831 | 50 hours at 80 °C, 10-1 mm: + 70 max. (350 max) |
| Corrosion protection ISO 11007 | Standard (distilled water): 0-0 |
| Oil separation DIN 51 817 | 7 days at 40 °C: 0.8-3 % |
| Rolling bearing grease life | ROF test, L50 life at 10000 r/min: > 300 hrs at 120 °C |
| EP performances DIN 51350 | Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 2600 N |
| Thickener | Lithium/calcium |
| Base type | Synthetic ester |
| Colour | Off white |
| Container | Cartridge |
| Water resistence | 3 hours at 90 °C: 0 max. |
| Operating Time | -40°C |
| Ex-2 Features 2 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: + 50 max. (325 max.) |
| Ex-3 Features 3 | 50 hours at 80 °C, 10-1 mm: + 70 max. (350 max) |
| Ex-4 Features 4 | Standard (distilled water): 0-0 |
| Series | 7 days at 40 °C: 0.8-3 % |
| In-3 Internal Features 3 | ROF test, L50 life at 10000 r/min: > 300 hrs at 120 °C |
| In-6 Internal Features 6 | Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 2600 N |
| Te-2 Laser Line Length | 3 hours at 90 °C: 0 max. |
| Lower Operating Temperature | -40°C |
| Upper Operating Temperature | +90°C |
| Basic Reference | Grease |
| EAN code | 7316579290234 |
