EAN code: 7316575127954
| Brand | SKF |
|---|---|
| Mfr Part No. | CMSS 2200T |
| Acorn Code | CMSS2200T-SKF |
| HS Code | 8482 99 00 90 |
| COO | XXX |

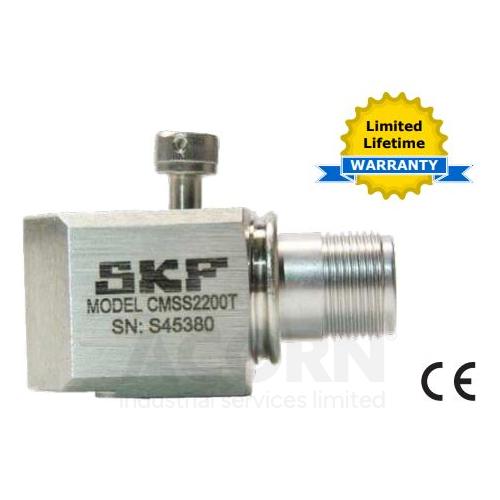

The CMSS 2200T is a cost-effective, dual output sensor ideal for light to medium-duty applications, where both vibration and temperature measurements are required. The CMSS 2200T is typically used in the following industries:
• Pulp and Paper
• Food and Beverage
• Automation
• Metals
• Water and Waste Water
Common applications include general purpose machines such as pumps, motors and fans.
Features:
• For use with all SKF on-line surveillance systems
• Measures both acceleration and temperature
• Low profile
• Rugged, corrosion resistant and hermetically sealed for installation in high humidity areas
• 100 mV/g sensitivity to optimize use in multiple applications
• 10 mV/°C temperature output sensitivity
• Meets CE, EMC requirements
• ESD protection
• M6 and 1/4-28 captive mounting bolts provided
• Miswiring protection
| Manufacturer Product Code | CMSS 2200T |
|---|---|
| Basic Product Description | Industrial sensor, side exit, (XDCR,ACCL,TEMP,SIDE EXIT) |
| UOM | Each |
| Weight (Kg) | 0.19 |
| Certification | CE, EMC requirements |
| Material | 316L Stainless steel case |
| Sensor Sensetivity | 100 mV/g |
| EAN | 7316575127954 |
