TMMA 80, SKF, SKF EasyPull Mechanical puller

Mechanical Jaw Pullers, EAN code: 7316572464731

Brand SKF
Mfr Part No. TMMA 80
Acorn Code TMMA80-SKF
HS Code 8482 99 00 90
COO Hungary (HU)


in stock

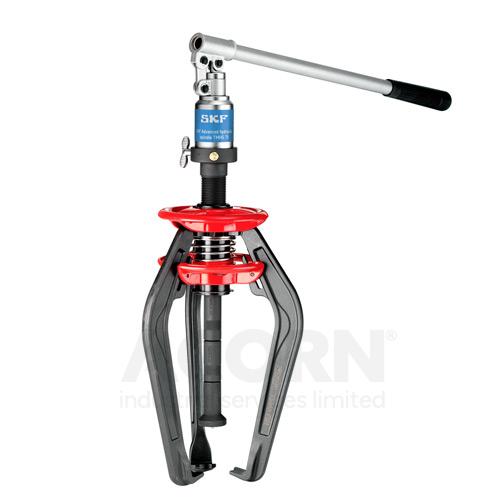

The SKF EasyPull TMMA 80 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 80 is mechanically operated and capable of withdrawl forces up to 80 kN for components with a maximum outer diameter of 200 mm (7.8 in).

• Unique red rings spring-operated opening mechanism allow the TMMA 80 to be placed behind the component with just one movement
• Self-centring capability and nosepiece help to avoid damage to shaft
• Self-locking arms help to prevent puller slipping under load
• Sturdy design allows safe dismounting of components in the tightest applications
• Hydraulic force generators TMHS 75 available as an accessory


Product Attributes
Manufacturer Product Code TMMA 80
Basic Product Description SKF EasyPull Mechanical puller
UOM Each
Weight (Kg) 5.7
Claw Height 9.8 mm
Adapter to upgrade to hydraulic version TMHS 75
Effective arm length/Reach 200 mm
Maximum withdrawal force (kN) 80 kN
Puller Type or Accessories Mechanical Jaw Pullers
Series TMMA
EAN code 7316572464731
