TMBS 150E, SKF, Strong Back Bearing Puller Set

Strong Back Pullers, EAN code: 7316572298480

Brand SKF
Mfr Part No. TMBS 150E
Acorn Code TMBS150E-SKF
HS Code 8482 99 00 90
COO Taiwan, Province Of China (TW)


in stock

The SKF TMBS 150E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated with a hydraulic spindle for effortless dismounting up to 100 kN (11.2 US ton). A special separator design is used that can be easily inserted between the bearing and the shoulder on the shaft.

• Easily separator placement between bearing and shoulder on the shaft
• Especially suitable for larger shaft diameter
• Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
• Hydraulic spindle with safety valve for safe and effortless dismounting
• Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing
• Quick adaptation to required pulling length with 2x hydraulic spindle extension pieces and extension rods for pullings lengths up to 816 mm (32.1 in.)


Product Attributes
Manufacturer Product Code TMBS 150E
Basic Product Description Strong Back Bearing Puller Set
Shaft diameter 35-150mm
Maximum bearing outer diameter 215mm
Weight (Kg) 17

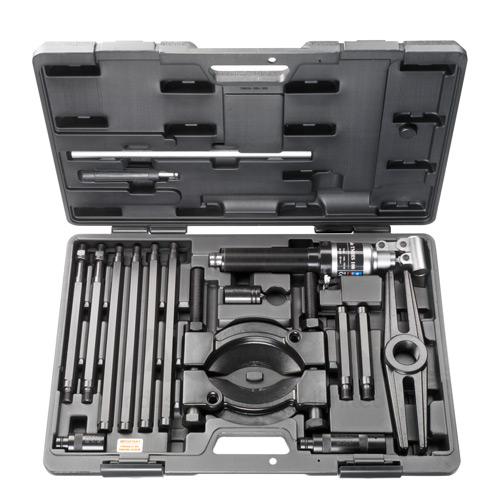

Kit Contents Contents
1 x separator set
2 x main rods
2 x extension rods, 125 mm (4.9 in.)
4 x extension rods, 285 mm (11.2 in.)
1 x beam
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in.)
1 x nosepiece with centre point for hydraulic spindle
Effective arm length/Reach 120-816mm
Maximum withdrawal force (kN) 100 kN
Puller Type or Accessories Strong Back Pullers
Series TMBS
EAN code 7316572298480
