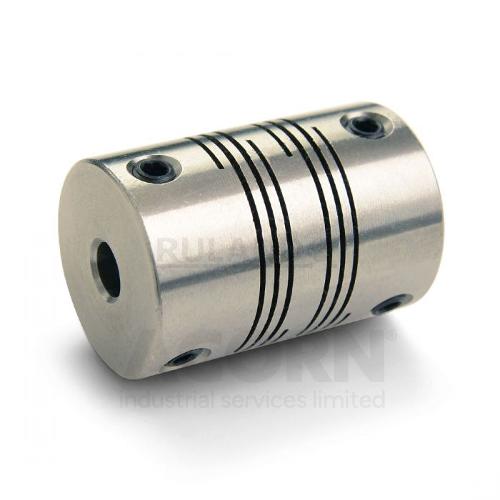

FSMR16-6-6-SS, Ruland, Stainless Steel set screw style six beam coupling

Metric, Stainless Steel, Beam Coupling, Size: 16

Brand Ruland
Mfr Part No. FSMR16-6-6-SS
Acorn Code FSMR16-6-6-SS-RULAND
HS Code 8483 50 80 90
COO United States (US)



Ruland FSMR-SS is a set screw style six beam coupling.

It is machined from a single piece of material and features two sets of three spiral cuts. This gives it higher torque capacity, lower windup, and larger body sizes than single or four beam couplings and allows for use in light duty power transmission applications such as coupling a servo motor to a lead screw.

FSMR-SS is zero-backlash and has a balanced design for reduced vibration at high speeds of up to 6,000 RPM.

All hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities.

FSMR-SS is made from 303 stainless steel for increased torque capacity. It is machined from bar stock that is sourced exclusively from North American mills and RoHS3 and REACH compliant.

FSMR-SS is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.


Product Attributes
Manufacturer Product Code FSMR16-6-6-SS
Basic Product Description Stainless Steel set screw style six beam coupling
Measurement Metric
UOM Each
Component Complete
Size 16
Bore Type Plain Bore
Hub Design Set Screw
Large Bore (mm) 6
Small Bore (mm) 6
od (mm) 15.9
Length (mm) 25.4
Large Bore (inch) 0.07
Weights (Kgs) 0.07
Material Stainless Steel
Screw Material Alloy Steel
Screw Finish Black Oxide
Number of Screws 4 ea
