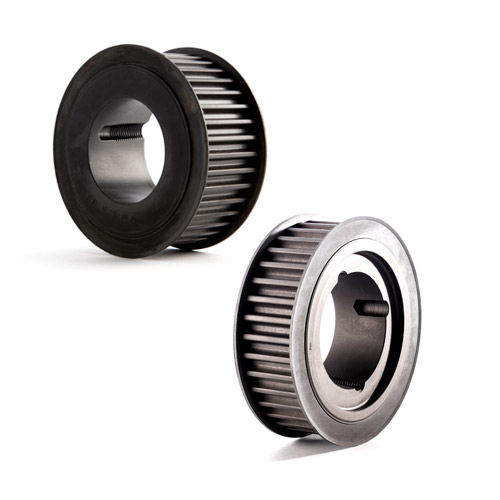

Gates Tapered bore timing pulleys

Gates Tapered Bore Timing Pulleys are precision-engineered pulleys designed for use in synchronous belt drive systems. These pulleys are manufactured with a tapered bore that accommodates taper lock bushings, providing a secure, easy-to-install, and adjustable fit for various shaft sizes.

Register to buy online

Gates tapered bore timing pulleys
1-20 of 196 products
1-20 of 196 products
Filter Results

Where are Gates tapered bore timing pulleys used?

Gates tapered bore timing pulleys are designed to be used alongside Gates Poly Chain® timing belts and secured to the shaft using a bushing. This means that Gates timing pulleys can be used wherever there is a Poly Chain® belt.

These pulleys are highly resistant to water, chemicals, oil, grease and pollutants, making them ideal for use in harsh and contaminated environments.

Industries which use Gates tapered bore timing pulleys include:

  • Chemicals
  • Food and beverage
  • Materials handling
  • Mining and quarrying
  • Oil and gas
  • Packaging
  • Pharmaceutical and medical
  • Recycling

Gates Tapered bore timing pulleys FAQs

What is the advantage of a tapered bore pulley over a pilot bore pulley?

Tapered bore pulleys allow for easier installation and removal using taper lock bushings. This system ensures a secure fit without the need for machining the pulley, making it more adaptable and reducing the risk of damage during installation or removal.

How do I choose the correct tapered bore pulley for my application?

To select the right pulley, consider the type of belt, required pitch, number of teeth, material, and operating conditions. Gates provides selection tools and technical catalogs to help identify the appropriate product for your system.

How do I install a tapered bore pulley?

Tapered bore pulleys are installed using a taper lock bushing. Insert the bushing into the pulley’s tapered bore, align it with the shaft, and tighten the set screws according to the recommended torque. This creates a tight fit without slippage.

How do I maintain Gates tapered bore pulleys?

Regularly inspect for wear, alignment, and tension. Ensure that the taper lock bushing is secure and that the pulley is free from debris or corrosion. Proper tensioning and alignment help extend the life of both the pulley and the belt.

Filter Results

Filter

Keywords

Types

Stock

  • Just show products in stock (2)

Measurement

  • Metric (196)

Tapered Bush No.

  • 1108 (15)
  • 1210 (10)
  • 1610 (31)
  • 2012 (41)
  • 2517 (24)
  • 3020 (33)
  • 3525 (25)
  • 4030 (9)
  • 4535 (4)
  • 5040 (4)

Section

  • 8M (94)
  • 14M (74)
  • 5M (28)
