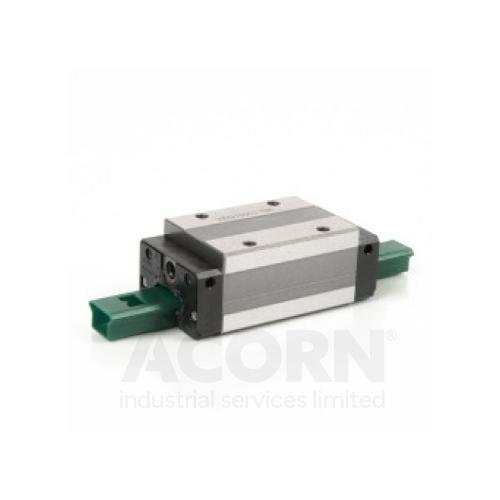

Linear slide, SS - With end seal + side seal + inner seal *
| Brand | THK |
|---|---|
| Mfr Part No. | SHS25R1SS(GK) |
| Acorn Code | SHS25R1SS(GK)-THK |
| HS Code | 8482 99 00 90 |
| COO | Japan (JP) |
The LM block has a smaller width (W) and the mounting holes are tapped. It succeeds the height dimension of full-ball type LM Guide HSR-R.
| Manufacturer Product Code | SHS25R1SS(GK) |
|---|---|
| Basic Product Description | Linear Slide With Recirculating Ball Design |
| UOM | Each |
| Height (mm) | 40 |
| Width (mm) | 48 |
| length (mm) | 92 |
| Rating C Kn | 31.7 |
| Rating C0 kN | 52.4 |
| Weight (Kg) | 0.66 |
| Sealing | SS - With end seal + side seal + inner seal * |
| Option | R |
| Temperature resistance | -20 to +80 °C |
