Linear slide, SS - With end seal + side seal + inner seal *
| Brand | THK |
|---|---|
| Mfr Part No. | HSR35YR1SS(GK) |
| Acorn Code | HSR35YR1SS(GK)-THK |
| HS Code | 8482 99 00 90 |
| COO | Japan (JP) |

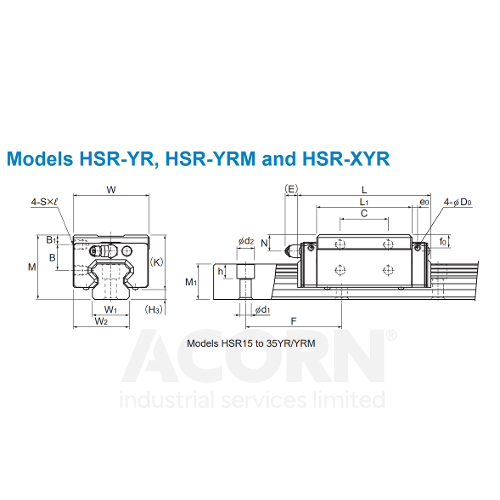

When using two units of LM Guide facing each other, the previous model required much time in machining the table and had difficulty achieving the desired accuracy and adjusting the clearance.Since model HSR-YR has tapped holes on the side of the LM block, a simpler structure is gained and significant man-hour cutting and accuracy increase can be achieved.
| Manufacturer Product Code | HSR35YR1SS(GK) |
|---|---|
| Basic Product Description | Linear Slide With Recirculating Ball Design |
| UOM | Each |
| Height (mm) | 55 |
| Width (mm) | 69.5 |
| length (mm) | 109.4 |
| Rating C Kn | 53.9 |
| Rating C0 kN | 70.2 |
| Weight (Kg) | 1.6 |
| Sealing | SS - With end seal + side seal + inner seal * |
| Option | YR |
| Temperature resistance | -20 to +80 °C |
