Linear slide, SS - With end seal + side seal + inner seal *
| Brand | THK |
|---|---|
| Mfr Part No. | HSR20HA1SSC1(GK) |
| Acorn Code | HSR20HA1SSC1(GK)-THK |
| HS Code | 8482 99 00 90 |
| COO | Japan (JP) |

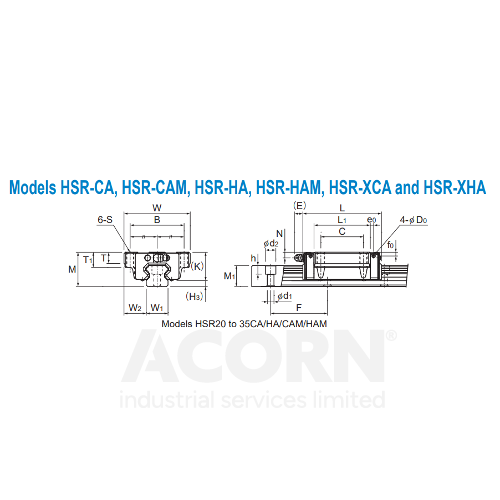

The LM block has the same cross-sectional shape as model HSR-CA, but has a longer overall LM block length (L) and a greater rated load.
| Manufacturer Product Code | HSR20HA1SSC1(GK) |
|---|---|
| Basic Product Description | Linear Slide With Recirculating Ball Design |
| UOM | Each |
| Height (mm) | 30 |
| Width (mm) | 63 |
| length (mm) | 90 |
| Rating C Kn | 23.9 |
| Rating C0 kN | 35.8 |
| Weight (Kg) | 0.35 |
| Sealing | SS - With end seal + side seal + inner seal * |
| Option | HA |
| Temperature resistance | -20 to +80 °C |
