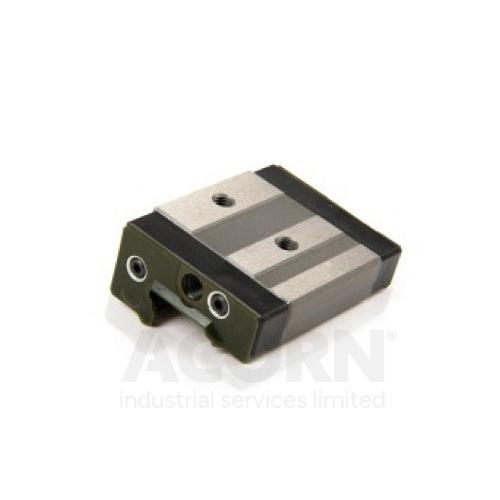

Linear slide, SS - With end seal + side seal + inner seal *
| Brand | THK |
|---|---|
| Mfr Part No. | GSR15V1SS(GK) |
| Acorn Code | GSR15V1SS(GK)-THK |
| HS Code | 8482 99 00 90 |
| COO | Japan (JP) |
Model GSR has a special contact structure using circular-arc grooves. This increases self-adjusting capability and makes GSR an optimal model for places associated with difficulty establishing high accuracy and for general industrial machinery.
* Model GSR cannot be used in single-axis applications.
| Manufacturer Product Code | GSR15V1SS(GK) |
|---|---|
| Basic Product Description | Linear Slide With Recirculating Ball Design |
| UOM | Each |
| Height (mm) | 20 |
| Width (mm) | 32 |
| length (mm) | 47.1 |
| Rating C Kn | 6.51 |
| Rating C0 kN | 6.77 |
| Weight (Kg) | 0.08 |
| Sealing | SS - With end seal + side seal + inner seal * |
| Option | V |
| Temperature resistance | -20 to +80 °C |
