Metric, Bearing unit, Cast iron, Standard Seals, Eccentric locking collar, EAN code: 07316571183831
| Brand | SKF |
|---|---|
| Mfr Part No. | TU 50 FM |
| Acorn Code | TU50FM-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

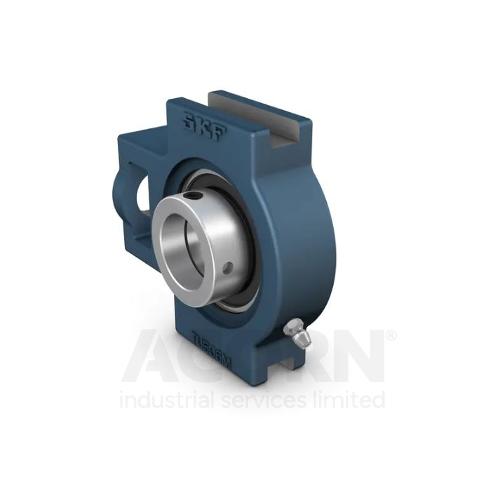

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
• Designed for rotation in one direction
• Quick and easy to mount onto the shaft
• Accommodate static initial misalignment
• Long service life
• Reduced noise and vibration levels
| Manufacturer Product Code | TU 50 FM |
|---|---|
| Basic Product Description | Y Bearing Take-up bearing unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| Housing overall width | 49 |
| Weight (Kg) | 2.443 |
| Seals | Standard Seals |
| Features | Eccentric locking collar |
| Bore Type | Cylindrical |
| Bearing Material | Bearing steel |
| Housing Material | Cast iron |
| Bearing/Insert reference | YET 210 |
| Housing reference | TU 510 M |
| Basic dynamic load rating | 35.1 kN |
| Basic static load rating | 23.2 kN |
| Limiting speed | 4000 r/min |
| EAN code | 07316571183831 |
