RSTO5-TV, INA, Yoke type track roller, without axial guidance, outer ring without ribs
Track roller, Polymer, Without, Crowned outer ring, EAN code: 4012802717105
$11.14
In stock
Track roller, Polymer, Without, Crowned outer ring, EAN code: 07316570941975
| Brand | SKF |
|---|---|
| Mfr Part No. | RSTO 5 TN |
| Acorn Code | RSTO5TN-SKF |
| HS Code | 8482 99 00 90 |
| COO | Slovakia (SK) |

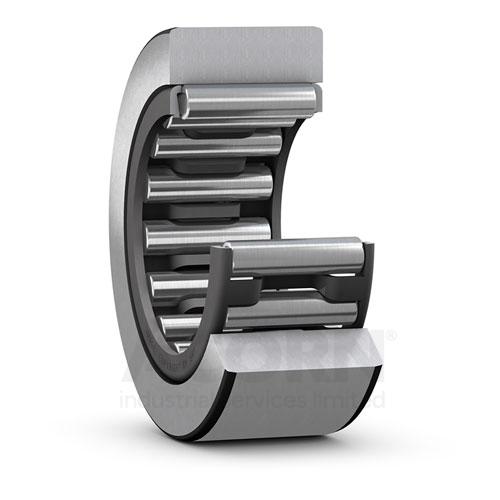

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The outer ring and the needle roller and cage assembly can be mounted separately.
• High radial load carrying capacity
• Able to withstand shock loads
• Long service life
• Ready to mount
• Separable design
| Manufacturer Product Code | RSTO 5 TN |
|---|---|
| Basic Product Description | Support rollers (Yoke-type track rollers) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 7 |
| od (mm) | 16 |
| Width (mm) | 7.8 |
| Number of Rows | 1 |
| Weight (Kg) | 0.008 |
| Sealing | Without |
| Outer ring profile | Crowned outer ring |
| Cage design | With cage |
| Rolling elements | Needle rollers |
| Cage material | Polymer |
| Bearing Material | Bearing Steel |
| Basic static load rating | 2.51 kN |
| Limiting speed | 8000 r/min |
| Reference speed | 8000 |
| EAN-Code | 07316570941975 |
