BS, Steel, Pilot Bore Sprocket, EAN code: 07316572802472
| Brand | SKF |
|---|---|
| Mfr Part No. | PHS 24B-1C57 |
| Acorn Code | 24B-1C57-SKF |
| HS Code | 8483 90 20 90 |
| COO | China (CN) |

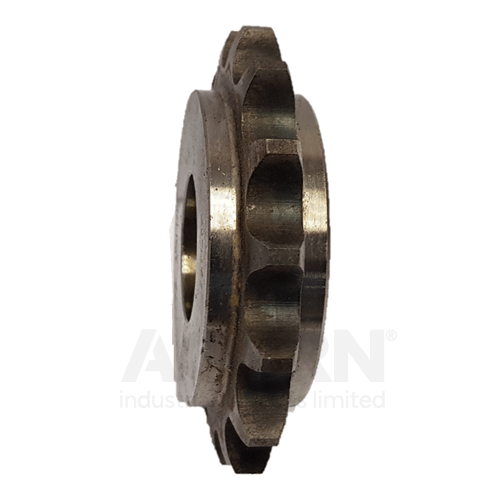

Simplex sprocket with double hub and rough stock bore, European standards (EN)
These simplex sprockets have a rough stock bore and hub profile on both sides of the sprocket to connect to the shaft.
As standard, all sprockets are made from high-quality steels and have a black oxide coating.
• Manufactured according to international global standards
• Made from high-grade steel and carbon steel
| Manufacturer Product Code | PHS 24B-1C57 |
|---|---|
| Basic Product Description | Pilot Bore Sprocket |
| Standard BS/ANSI | BS |
| UOM | Each |
| Tooth Pitch (ANSI) Inch | 1.1/2 |
| No. Teeth (mm) | 57 |
| Pitch Diameter (mm) | 691.62 |
| Bore max (mm) | 133 |
| Bore min (mm) | 30 |
| Hub Size (mm) | 160 |
| Hub diameter (mm) | 160 |
| Width (mm) | 100 |
| Weight (Kg) | 74.815 |
| Bore Type | Pilot Bore |
| No. Teeth Rows | Simplex - 1 Row |
| Material | Steel |
| EAN | 07316572802472 |
