EAN code: 7316575880323
| Brand | SKF |
|---|---|
| Mfr Part No. | SM 56 -CS |
| Acorn Code | SM56-CS-SKF |
| HS Code | 8482 99 00 90 |
| COO | XXX |

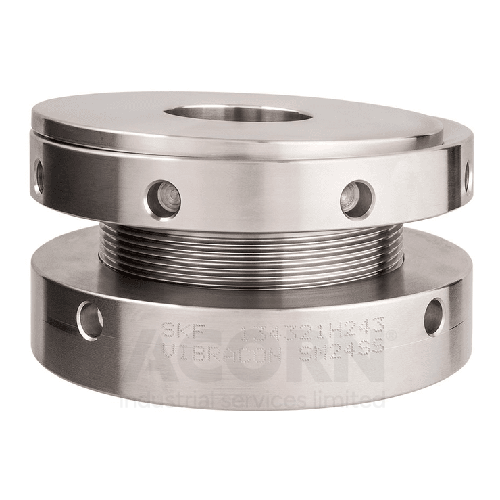

SKF Vibracon chocks are machinery mounting chocks that are easily and accurately adjusted. The chocks accommodate the angular difference between machine and the mounting base without expensive machining of the base or extra work of installing epoxy resin chocks. The self leveling capability combined with the height adjustment feature eliminates the possibility of a soft foot in the production line through the life cycle of the machinery.
| Manufacturer Product Code | SM 56 -CS |
|---|---|
| Basic Product Description | Vibracon SM 56 Carbon Steel Chock |
| UOM | Each |
| Bolt size | M56 |
| Minimum height | 75 |
| Maximum height | 90 |
| Outer diameter (mm) | 230 |
| Bolt hole diameter | 66 |
| Machine load | 225 |
| Proof load Kn | 1750 |
| Tightening torque | 10035 |
| Weight (Kg) | 23 |
| Material | Carbon Steel |
| EAN-Code | 7316575880323 |
