Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Set screw locking, Standard grease, EAN code: 07316579542777
| Brand | SKF |
|---|---|
| Mfr Part No. | UCFC 216 |
| Acorn Code | UCFC216-SKF |
| HS Code | 8483 20 00 00 |
| COO | China (CN) |

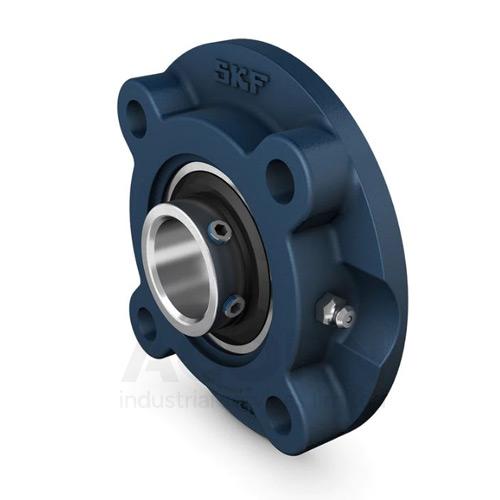

These round flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Resist high levels of contamination
• Designed for high temperatures and speeds
• Accommodate relatively heavy loads
• Cost-effective
| Manufacturer Product Code | UCFC 216 |
|---|---|
| Basic Product Description | Round flange ball bearing unit with extended inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 80 |
| Width (mm) | 58 |
| Pitch diameter of bolt holes of round and triangle flange type housing | 200 |
| Weight (Kg) | 9.12 |
| Lubrication | Standard grease |
| Seals | Seal and flinger on both sides |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| Bearing Material | Bearing steel |
| Housing Material | Cast Iron |
| Basic dynamic load rating | 71.5 |
| Basic static load rating | 54 |
| Limiting speed | 1900 |
| EAN Code: | 07316579542777 |
Metric, Bearing unit, R seals, Centring spigot, Grub screws in inner ring, EAN code: 4012802822779
This item is not currently available from our stocks.
Despatch date information is on request.
Metric, Bearing unit, Bearing steel, Standard seals, Set screw locking, Standard grease, EAN code: 00029176578816
This item is not currently available from our stocks.
Despatch date information is on request.
Metric, Bearing unit, Black Durotect BS coating, Standard seals, Set screw locking, Standard grease, EAN code: 4054366901361
This item is not currently available from our stocks.
Despatch date information is on request.
Metric, Bearing unit, Bearing steel, Standard seals, Set screw locking, Standard grease, EAN code: 0087796076136
