S 30 N, Neutral, Hydraulic rod end, with rectangular welding face, requiring maintenance, steel/steel, open
Metric, Rod end, Steel/Steel
$8.79
In stock
Metric, Rod end, Steel/Steel, EAN code: 07316577295125
| Brand | SKF |
|---|---|
| Mfr Part No. | SCF 30 ES |
| Acorn Code | SCF30ES-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

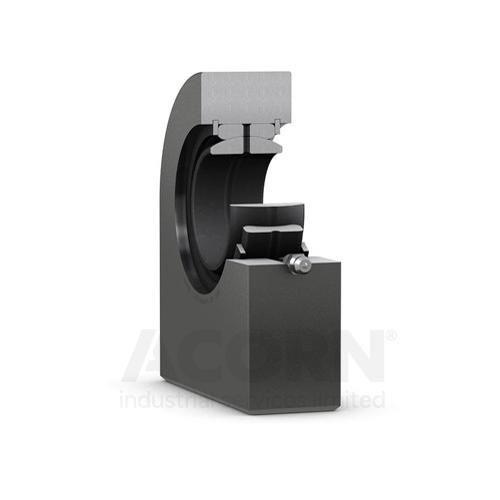

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
• Suitable for heavy static, alternating or impact loads
• Easy to relubricate
• Bearing can be exchanged
| Manufacturer Product Code | SCF 30 ES |
|---|---|
| Basic Product Description | Hydraulic rod end, with rectangular welding face, requiring maintenance, steel/steel, open |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring | 30 |
| Centre height, housing (from end of shank) | 51 |
| Outside diameter, housing eye | 66.5 |
| Width, bearing inner ring | 22 |
| Width, housing eye | 29 |
| Weight (Kg) | 0.87 |
| Tilt angle | Tilt angle: 6° |
| Attachment feature, rod end shank | Rectangular section, for welding |
| Sliding contact surface combination | Steel/Steel |
| Housing Material | Steel |
| Basic dynamic load rating | 62 kN |
| Basic static load rating | 110 kN |
| EAN code | 07316577295125 |
Metric, Rod end, Steel/Steel
Metric, Rod end, Steel/Steel, EAN code: 4012802525427
This item is not currently available from our stocks.
Despatch date information is on request.
