Metric, Rod end, Steel/PTFE FRP, Male connection, Right-hand thread, Maintenance free, EAN code: 07316577003751
| Brand | SKF |
|---|---|
| Mfr Part No. | SAKB 18 F |
| Acorn Code | SAKB18F-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

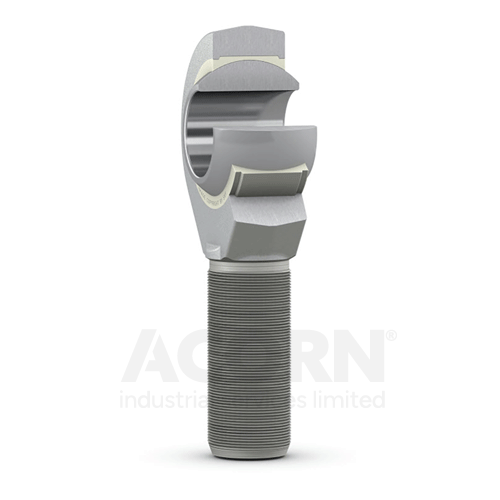

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free.
• Long service life
• Maintenance-free
• Relatively insensitive to contaminants
• Low coefficient of friction
• Simple and ready-to-mount
| Manufacturer Product Code | SAKB 18 F |
|---|---|
| Basic Product Description | Rod end |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring | 18 |
| Centre height, housing (from end of shank) | 72 |
| Outside diameter, housing eye | 47 |
| Thread (mm) | M 18x1.5 |
| Housing length, total | 97 |
| Weight (Kg) | 0.26 |
| Lubrication | Maintenance free |
| Sealing solution | Without seals |
| 4 | Male connection |
| Thread (L/R) | Right-hand thread |
| Tile Angle | Tilt angle: 16° |
| Bearing Material / Liner | Steel/PTFE FRP |
| Housing Material | Steel |
| Basic dynamic load rating | 26 kN |
| Basic static load rating | 41.5 kN |
| EAN code | 07316577003751 |
Metric, Rod end, Steel/PTFE Fabric, Male connection, Right-hand thread, Maintenance free
This item is not currently available from our stocks.
Despatch date information is on request.
