Metric, Rod end, Steel/PTFE Fabric, Female connection, Left-hand thread, M52 x 3, Maintenance-free, EAN code: 07316572049211
| Brand | SKF |
|---|---|
| Mfr Part No. | SIL 50 TXE-2LS |
| Acorn Code | SIL50TXE-2LS-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

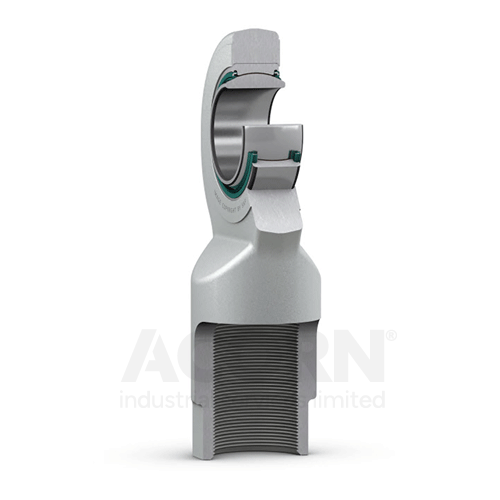

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free.
• Long service life
• Maintenance-free
• Suitable for very heavy, constant direction loads
• Low coefficient of friction
• Simple and ready-to-mount
| Manufacturer Product Code | SIL 50 TXE-2LS |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 50 |
| od (mm) | 195 |
| Width (mm) | 114 |
| Thread (mm) | M52 x 3 |
| Width, bearing inner ring (mm) | 35 |
| Width, housing eye (mm) | 31 |
| Weight (Kg) | 4.6 |
| Lubrication | Maintenance-free |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Tilt angle | Tilt angle: 6° |
| Sealing solution | Triple-lip seals |
| Housing material | Steel |
| Bearing Material | Steel/PTFE Fabric |
| Basic dynamic load rating | 440 kN |
| Basic static load rating | 270 kN |
| EAN code | 07316572049211 |
