FIL15 D, Neutral, Rod end
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M14 x 2
$9.98
In stock
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M14, Requires maintenance, EAN code: 07316577003577
| Brand | SKF |
|---|---|
| Mfr Part No. | SIL 15 ES |
| Acorn Code | SIL15ES-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

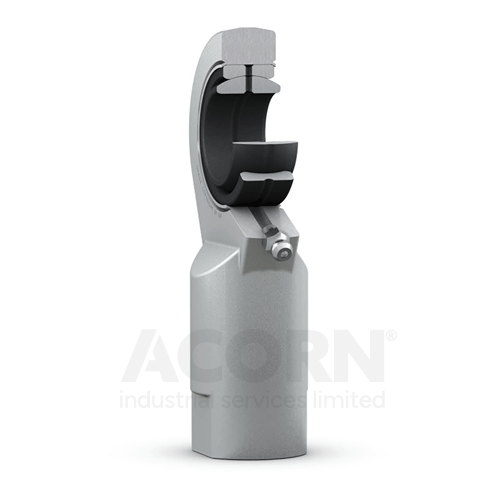

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft.
• Suitable for heavy static, alternating or impact loads
• Simple and ready-to-mount
• Easy to relubricate
| Manufacturer Product Code | SIL 15 ES |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 15 |
| od (mm) | 61 |
| Width (mm) | 41 |
| Thread (mm) | M14 |
| Width, bearing inner ring (mm) | 12 |
| Width, housing eye (mm) | 10.5 |
| Weight (Kg) | 0.17 |
| Lubrication | Requires maintenance |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Tilt angle | Tilt angle: 8° |
| Sealing solution | Without seals |
| Housing material | Steel |
| Bearing Material | Steel/Steel |
| Basic dynamic load rating | 17 kN |
| Basic static load rating | 37.5 kN |
| EAN code | 07316577003577 |
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M14 x 2
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, Requires maintenance, EAN code: 4012802527971
This item is not currently available from our stocks.
Despatch date information is on request.
