S 50 C, Neutral, Rod End with cylindrical section welding shank
Metric, Rod end, Steel/Steel, St52-3, forged.
$12.83
In stock
Metric, Rod end, Steel/Steel, EAN code: 07316577002792
| Brand | SKF |
|---|---|
| Mfr Part No. | SC 50 ES |
| Acorn Code | SC50ES-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

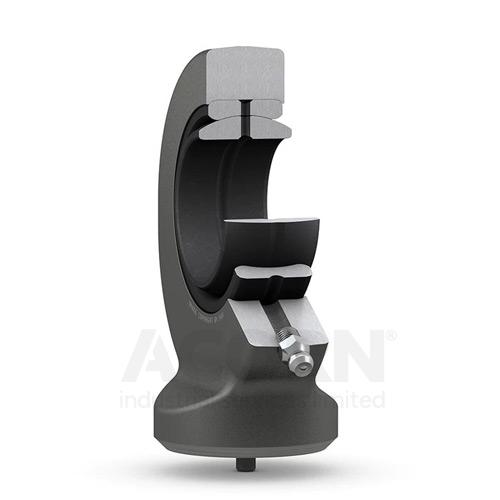

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.
• Suitable for heavy static, alternating or impact loads
• Easy to relubricate
• Easy to center
| Manufacturer Product Code | SC 50 ES |
|---|---|
| Basic Product Description | Rod End with cylindrical section welding shank |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 50 |
| Centre height, housing (from end of shank) (mm) | 88 |
| Outside diameter, housing eye (mm) | 114 |
| Width, bearing inner ring (mm) | 35 |
| Width, housing eye (mm) | 31 |
| Weight (Kg) | 2.675 |
| Seals | Without |
| Tilt angle | Tilt angle: 6° |
| Attachment feature, rod end shank | Cylindrical section, with locating pin, for welding |
| Sliding contact surface combination | Steel/Steel |
| Bearing/Insert | GE..ES |
| Basic dynamic load rating | 156 |
| Basic static load rating | 220 |
| EAN code | 07316577002792 |
Metric, Rod end, Steel/Steel, St52-3, forged.
Metric, Rod end, Steel/Steel, EAN code: 4012802527308
This item is not currently available from our stocks.
Despatch date information is on request.
