C = 62° Contact angle, Moderate preload, Open (No seal)
| Brand | SKF |
|---|---|
| Mfr Part No. | BSD 2047 CGB |
| Acorn Code | BSD2047CGB-SKF |
| HS Code | 8482 10 90 30 |
| COO | Austria (AT) |
These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.
• Very high running accuracy
• High axial stiffness
• High axial load carrying capacity in one direction
• Universally matchable
• Well suited for screw drive applications
| Manufacturer Product Code | BSD 2047 CGB |
|---|---|

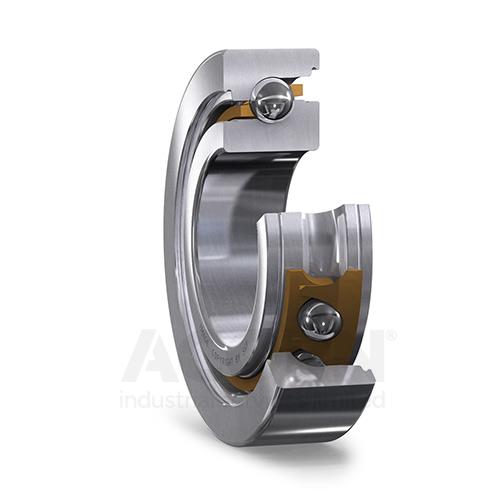

| Basic Product Description | Single Row Angular Contact Ball Bearing |
| UOM | Single |
| id (mm) | 20 |
| od (mm) | 47 |
| Width (mm) | 15 |
| Weight (Kg) | 0.1274 |
| Seals/Shields | Open (No seal) |
| Contact Angle | C = 62° Contact angle |
| Preload | Moderate preload |
| Bearing Arrangement | Single Bearing |
| Bearing Set | Universally Matched |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 22 kN |
| Basic static load rating | 49 |
| EAN-Code | 7316570827521 |
