Dimensional accuracy approximately in accordance with ISO tolerance class 5 and running accuracy approximately in accordance with ISO tolerance class 4 for thrust bearing, Bearing, Bearing steel, Open (no seal)
| Brand | SKF |
|---|---|
| Mfr Part No. | BTW 200 CM/SP |
| Acorn Code | BTW200CM/SP-SKF |
| HS Code | 8482 10 90 30 |
| COO | XXX |

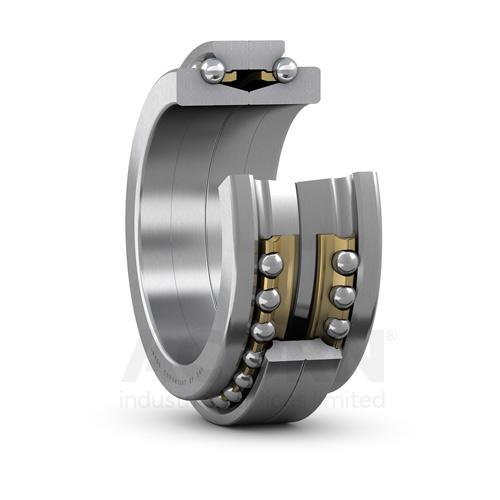

Double direction angular contact thrust ball bearings are designed to locate spindle shafts axially in both directions. These bearings are intended for mounting in combination with cylindrical roller bearings, and consist of two single row angular contact thrust ball bearings arranged back-to-back. The large number of balls enables these bearings to accommodate high axial loads in both directions and provides a high degree of system rigidity.
• Accommodate high axial loads in both directions
• Offer maximum load carrying capacity and maximum system rigidity
• Separable
| Manufacturer Product Code | BTW 200 CM/SP |
|---|---|
| Basic Product Description | Double Direction Angular Contact Thrust Ball Bearing for Screw Drives |
| UOM | Each |
| id (mm) | 200 |
| od (mm) | 310 |
| Width (mm) | 132 |
| Weight (Kg) | 40 |
| Seals/Shields | Open (no seal) |
| Contact Angle | 60° Contact angle |
| Accuracy | Dimensional accuracy approximately in accordance with ISO tolerance class 5 and running accuracy approximately in accordance with ISO tolerance class 4 for thrust bearing |
| Precision Grade | Super Precision |
| Cage material | Machined brass, ball centred |
| Bearing Material | Bearing steel |
| EAN-Code | 7316574838349 |
Bearing, Bearing steel, Open (no seal), 60° Contact angle, EAN code: 4012801487955
This item is not currently available from our stocks.
Despatch date information is on request.
