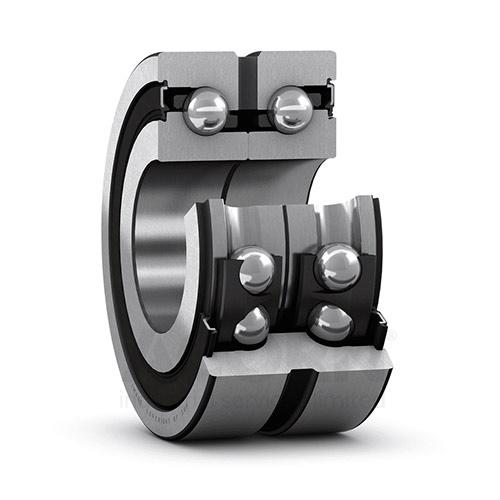

BEAS 030062 C-2RSH, SKF, Single direction angular contact thrust ball bearing

Bearing, Bearing steel, Seal on both sides, None

SKF Authorised distributor logo
Brand SKF
Mfr Part No. BEAS 030062 C-2RSH
Acorn Code BEAS030062C-2RSH-SKF
HS Code 8482 10 90 30
COO XXX

$299.71

+

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft. The bearings provide a high degree of axial stiffness, high axial load carrying capacity, accommodate high speeds and rapid accelerations, and offer very high running accuracy.

• Accommodate radial loads, and axial loads in both directions
• Greased and sealed as standard
• Ready and easy to mount
• Easy to relubricate

Specification

Product Attributes
Manufacturer Product Code BEAS 030062 C-2RSH
Basic Product Description Single direction angular contact thrust ball bearing
UOM Each
id (mm) 30
od (mm) 62
Width (mm) 28
Weight (Kg) 0.388
Seals/Shields Seal on both sides
Locating feature, bearing outer ring None
Contact Angle 60° Contact angle
Precision Grade Super Precision
Bearing Material Bearing steel
Dynamic Load Rating C (N) 31 kN
Static Load Rating Co (N) 69.5
Te-2 Load 69.5
EAN-Code 7316577833990
