Metric, Bearing, Bearing steel, Normal Clearance (Cn), EAN code: 07316570849806
| Brand | SKF |
|---|---|
| Mfr Part No. | RNU 205 ECP |
| Acorn Code | RNU205ECP-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

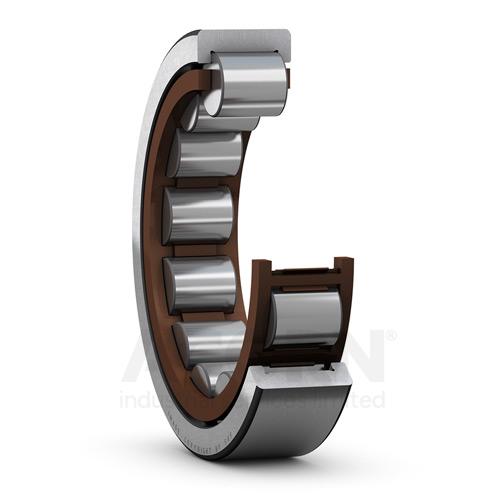

Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
• High radial load carrying capacity
• Enable a stronger, stiffer shaft
• Low friction
• Long service life
• Accommodate axial displacement in both directions
| Manufacturer Product Code | RNU 205 ECP |
|---|---|
| Basic Product Description | Single row cylindrical roller bearing, NU design, without inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 31.5 |
| od (mm) | 52 |
| Width (mm) | 15 |
| Weight (Kg) | 0.1 |
| Clearance | Normal Clearance (Cn) |
| Cage design | Reinforced moulded polymer |
| Cage material | Polymer cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 32.5 kN |
| Basic static load rating | 27 |
| Limiting speed | 16000 |
| Reference speed | 15000 |
| EAN code | 07316570849806 |
