NU210-E-XL-K-TVP2-C3, FAG, Cylindrical roller bearing. Fixed outer ring - Inner ring slides in both directions
Metric, Bearing, Bearing steel, C3 Clearance, EAN code: 4012801393683
$46.50
In stock
Metric, Bearing, Bearing steel, C3 Clearance, EAN code: 07316577314703
| Brand | SKF |
|---|---|
| Mfr Part No. | NU 210 ECKP/C3 |
| Acorn Code | NU210ECKP/C3-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

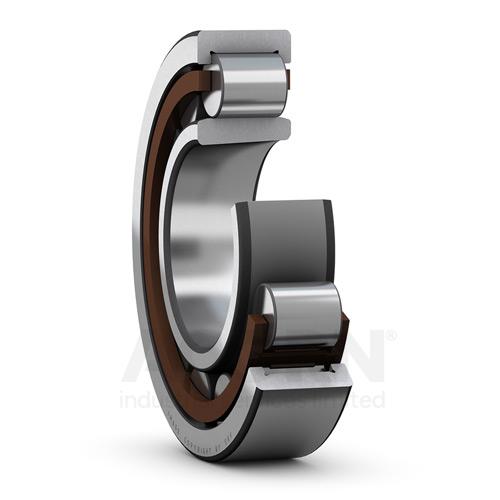

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. The tapered bore enables the bearings to be mounted on a tapered shaft seat or on a cylindrical shaft seat using an adapter or withdrawal sleeve. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
• High radial load carrying capacity
• Low friction
• Long service life
• Accommodate axial displacement in both directions
• Separable design
| Manufacturer Product Code | NU 210 ECKP/C3 |
|---|---|
| Basic Product Description | Single row cylindrical roller bearing, NU design, with tapered bore |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| od (mm) | 90 |
| Width (mm) | 20 |
| Weight (Kg) | 0.51 |
| Bore Type | Tapered |
| Clearance | C3 Clearance |
| Cage design | Reinforced moulded polymer |
| Cage material | Polymer cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 73.5 kN |
| Basic static load rating | 69.5 |
| Limiting speed | 9000 |
| Reference speed | 8500 |
| EAN code | 07316577314703 |
Metric, Bearing, Bearing steel, C3 Clearance, EAN code: 4012801393683
