Metric, Bearing, Bearing steel, C3 Clearance, EAN code: 07316577723963
| Brand | SKF |
|---|---|
| Mfr Part No. | NJG 2320 VH/C3 |
| Acorn Code | NJG2320VH/C3-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

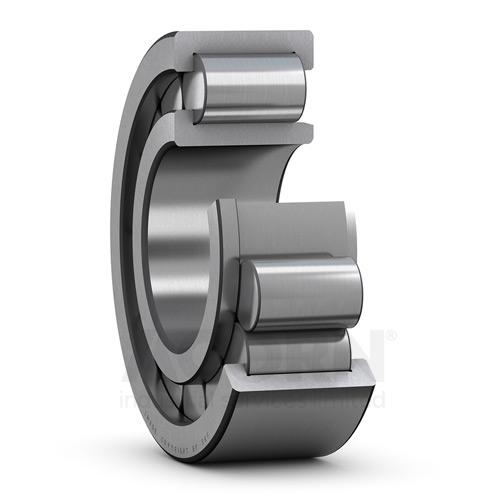

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the outer ring and one on the inner ring, NJG design bearings can accommodate axial displacement in one direction. A self-retaining roller complement enables the bearing components to be separated, which facilitates mounting and enables the bearing components to be interchanged.
• Very high radial load carrying capacity
• High radial stiffness
• Long service life
• Locate the shaft axially in one direction
• Separable design
| Manufacturer Product Code | NJG 2320 VH/C3 |
|---|---|
| Basic Product Description | Single row full complement cylindrical roller bearing, NJG design |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 100 |
| od (mm) | 215 |
| Width (mm) | 73 |
| Weight (Kg) | 13 |
| Bore Type | Cylindrical |
| Clearance | C3 Clearance |
| Cage design | Full complement |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 704 kN |
| Basic static load rating | 900 |
| Limiting speed | 1500 |
| Reference speed | 1200 |
| EAN code | 07316577723963 |
