Metric, Bearing, Bearing steel, Normal Clearance (Cn), EAN code: 7316575043322
| Brand | SKF |
|---|---|
| Mfr Part No. | NJ2309ECML |
| Acorn Code | NJ2309ECML-SKF |
| HS Code | 8482 40 00 00 |
| COO | XXX |
NJ design bearings:
- have two integral flanges on the outer ring and one on the inner ring
- can accommodate axial displacement of the shaft relative to the housing in one direction only
- are used to locate the shaft axially in one direction
- can be used together with an appropriate angle ring to stabilize the bearing in the other axial direction
| Manufacturer Product Code | NJ2309ECML |
|---|---|

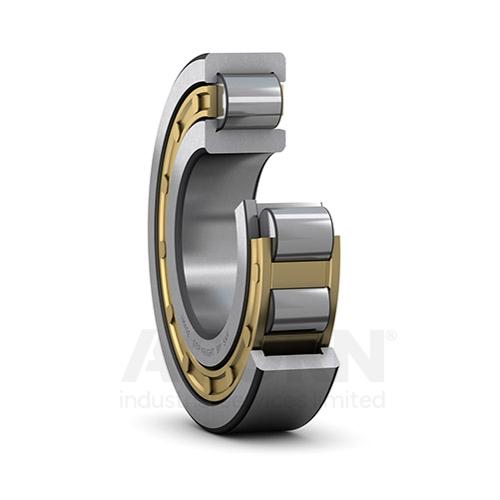

| Basic Product Description | Cylindrical roller bearing. Fixed outer ring - Inner ring slides one way |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 45 |
| od (mm) | 100 |
| Width (mm) | 36 |
| Weight (Kg) | 1.3 |
| Bore Type | Cylindrical |
| Clearance | Normal Clearance (Cn) |
| Cage design | Machined brass |
| Cage material | Brass cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 160 kN |
| Basic static load rating | 153 |
| Limiting speed | 13000 |
| Reference speed | 7500 |
| EAN code | 7316575043322 |
