Metric, Bearing, Bearing steel, C3 Clearance, EAN code: 07316577012432
| Brand | SKF |
|---|---|
| Mfr Part No. | NJ 2004 EV/C3 |
| Acorn Code | NJ2004EV/C3-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

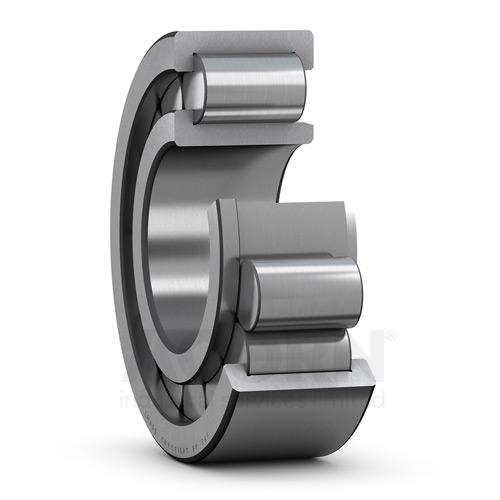

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
• High radial load carrying capacity
• Low friction
• Long service life
• Locate the shaft axially in one direction
• Separable design
| Manufacturer Product Code | NJ 2004 EV/C3 |
|---|---|
| Basic Product Description | Single row full complement cylindrical roller bearing, NJG design |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 20 |
| od (mm) | 42 |
| Width (mm) | 14 |
| Weight (Kg) | 0.088 |
| Bore Type | Cylindrical |
| Clearance | C3 Clearance |
| Cage design | Stamped steel |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 25.5 kN |
| Basic static load rating | 25.5 |
| Limiting speed | 20000 |
| Reference speed | 17000 |
| EAN code | 07316577012432 |
