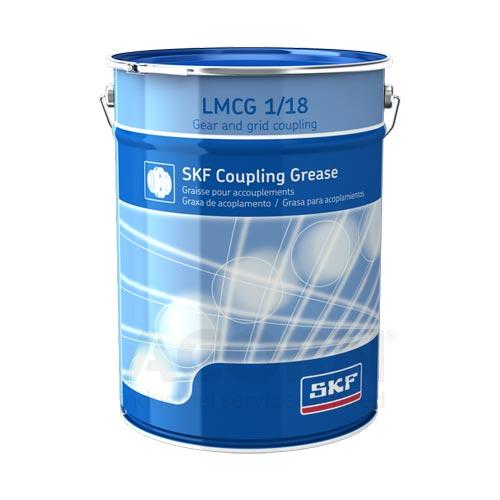

Grease, Pail, 60 strokes, 10-1 mm: 310-340, EAN code: 7316575583484
| Brand | SKF |
|---|---|
| Mfr Part No. | LMCG 1/18 |
| Acorn Code | LMCG1/18-SKF |
| HS Code | 2710 12 15 00 |
| COO | Sweden (SE) |
LMCG 1 is a polyethylene thickened and mineral oil based grease which also uses a lithium complex thickening technology. The grease is formulated to withstand high centrifugal forces and high-torque applications for grid and gear (flexible) couplings even where severe shock loadings, misalignment and vibration occur. Leakage is prevented at high speeds and the grease is stable in consistency. The special additive formulations make the grease suitable for applications subjected to high loads, high torque, wet environments, a wide range of speed regimes and wide range of temperatures.
Features & benefits:
• Excellent resistance to oil separation
• High acceleration and high operating speeds
• Excellent high-torque lubrication
• High corrosion protection
• Exceeds AGMA Type CG-1 and AGMA Type CG-2 requirements
• High coupling wear protection
• Excellent oxidation stability
• Due to low oil bleeding tendency, suitable for use in centralized lubrication systems
| Manufacturer Product Code | LMCG 1/18 |
|---|---|
| Basic Product Description | Grid and gear coupling grease LMCG 1 in 18 kg pail |
| Size (Per Unit) | 18 Kg |
| UOM | Each |
| Base Oil Viscosity cSt @ 40°C | 761 |
| Weight (Kg) | 20 |
| Penetration DIN ISO 2137 | 60 strokes, 10-1 mm: 310-340 |
| Corrosion protection ISO 11007 | Standard (distilled water): 0-0 |
| Oil separation DIN 51 817 | LMCG 1 |
| EP performances DIN 51350 | Wear scar DIN 51350/5,1400N: < 0.5 mm; 4-ball test, welding load DIN 51350/4: 3200 N |
| Thickener | Polyethylene |
| Base type | Mineral |
| Colour | Brown |
| Container | Pail |
| Operating Time | 0°C |
| Ex-2 Features 2 | 60 strokes, 10-1 mm: 310-340 |
| Ex-4 Features 4 | Standard (distilled water): 0-0 |
| Series | LMCG 1 |
| In-6 Internal Features 6 | Wear scar DIN 51350/5,1400N: < 0.5 mm; 4-ball test, welding load DIN 51350/4: 3200 N |
| Lower Operating Temperature | 0°C |
| Upper Operating Temperature | +120°C |
| Basic Reference | Grease |
| EAN code | 7316575583484 |
