Grease, Drum, > 300 °C, 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: +30 max., 50 hours at 80 °C, 10-1 mm: -20 to +30; 72 hours at 100 °C, 10-1 mm: -20 to +50, 1b max. at 100 °C, EAN code: 7316576974991
| Brand | SKF |
|---|---|
| Mfr Part No. | LGHC 2/50 |
| Acorn Code | LGHC2/50-SKF |
| HS Code | 2710 12 15 00 |
| COO | Netherlands (NL) |
LGHC 2 is a mineral oil based grease based on calcium sulphonate complex technology. It is formulated to withstand high loads, large amounts of water and high temperatures. It is most suitable for heavy applications, especially in the cement, mining and metals segments.
Features & benefits:
• Good mechanical stability
• Excellent corrosion protection
• Excellent high load lubricating capacity
Typical applications:
• Roll stands in metallurgical industry
• Continuous casters
• Vibrating screens
• Ball mills bearings
| Manufacturer Product Code | LGHC 2/50 |
|---|---|

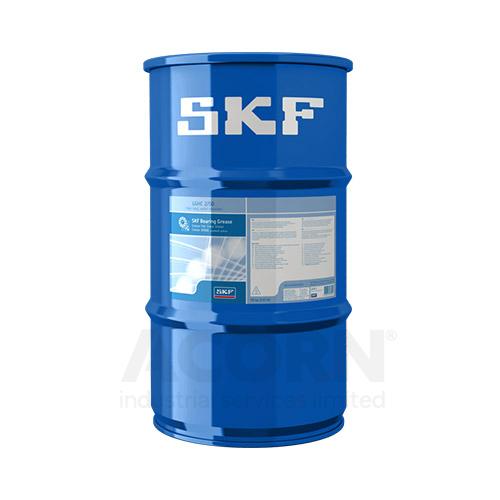

| Basic Product Description | SKF bearing grease LGHC 2 in 50 kg drum |
| Size (Per Unit) | 50 Kg |
| UOM | Each |
| Base Oil Viscosity cSt @ 40°C | 450 |
| Dropping point | > 300 °C |
| Penetration DIN ISO 2137 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: +30 max. |
| Roll stability ASTM D1831 | 50 hours at 80 °C, 10-1 mm: -20 to +30; 72 hours at 100 °C, 10-1 mm: -20 to +50 |
| Corrosion protection ISO 11007 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-1 |
| Oil separation DIN 51 817 | 7 days at 40 °C: < 2 % |
| Copper corrosion DIN 51811 | 1b max. at 100 °C |
| EP performances DIN 51350 | Wear scar DIN 51350/5,1400N: < 1.2 mm; 4-ball test, welding load DIN 51350/4: 4000 N |
| Thickener | Complex calcium sulphonate |
| Base type | Mineral |
| Colour | Brown |
| Container | Drum |
| Water resistence | 3 hours at 90 °C: 1 max. |
| Operating Time | -20°C |
| Ex-2 Features 2 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: +30 max. |
| Ex-3 Features 3 | 50 hours at 80 °C, 10-1 mm: -20 to +30; 72 hours at 100 °C, 10-1 mm: -20 to +50 |
| Ex-4 Features 4 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-1 |
| Series | 7 days at 40 °C: < 2 % |
| Model | 1b max. at 100 °C |
| In-6 Internal Features 6 | Wear scar DIN 51350/5,1400N: < 1.2 mm; 4-ball test, welding load DIN 51350/4: 4000 N |
| Te-2 Laser Line Length | 3 hours at 90 °C: 1 max. |
| Lower Operating Temperature | -20°C |
| Upper Operating Temperature | +140°C |
| Basic Reference | Grease |
| EAN code | 7316576974991 |
