Grease, Can, > 180 °C, 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max., 50 hours at 100 °C, 10-1 mm: +50 max., 1 max. at 100 °C, EAN code: 7316577745606
| Brand | SKF |
|---|---|
| Mfr Part No. | LGEV 2/5 |
| Acorn Code | LGEV2/5-SKF |
| HS Code | 2710 12 15 00 |
| COO | Germany (DE) |

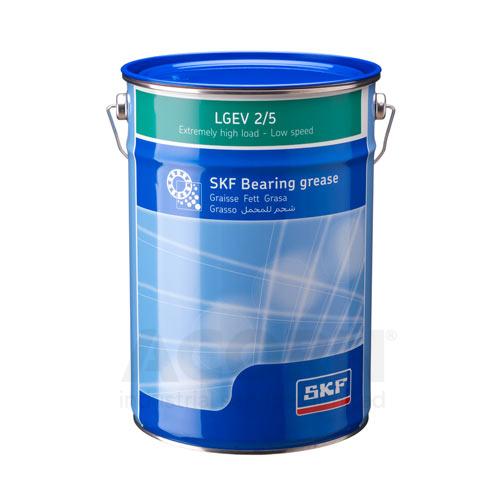

SKF LGEV 2 is a mineral oil based grease, using a lithium-calcium soap. It has a high content of molybdenum disulphide and graphite, in conjunction with an extremely high viscosity oil. This provides outstanding protection under the harshest conditions involving high loads, slow rotations and severe vibrations.
Features & benefits:
• Extremely suitable for lubricating large sized spherical roller bearings subject to high loads and slow rotations, a situation where microslip is likely to occur
• Extremely mechanically stable providing good water resistance and corrosion protection
Typical applications:
• Trunnion bearings on rotating drums
• Support and thrust rollers on rotary kilns and dryers
• Bucket wheel excavators
• Slewing ring bearings
• High pressure roller mills
• Crushers
| Manufacturer Product Code | LGEV 2/5 |
|---|---|
| Basic Product Description | Extremely high viscosity grease, 5 kg can |
| Size (Per Unit) | 5 Kg |
| UOM | Each |
| Base Oil Viscosity cSt @ 40°C | 1020 |
| Weight (Kg) | 5 |
| Dropping point | > 180 °C |
| Penetration DIN ISO 2137 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max. |
| Roll stability ASTM D1831 | 50 hours at 100 °C, 10-1 mm: +50 max. |
| Corrosion protection ISO 11007 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0 |
| Oil separation DIN 51 817 | 7 days at 40 °C: 1-5 % |
| Copper corrosion DIN 51811 | 1 max. at 100 °C |
| EP performances DIN 51350 | Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3000 N |
| Thickener | Lithium/calcium |
| Base type | Mineral |
| Colour | Black |
| Container | Can |
| Water resistence | 3 hours at 90 °C: 1 max. |
| Operating Time | -10°C |
| Ex-2 Features 2 | 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max. |
| Ex-3 Features 3 | 50 hours at 100 °C, 10-1 mm: +50 max. |
| Ex-4 Features 4 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0 |
| Series | 7 days at 40 °C: 1-5 % |
| Model | 1 max. at 100 °C |
| In-6 Internal Features 6 | Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3000 N |
| Te-2 Laser Line Length | 3 hours at 90 °C: 1 max. |
| Lower Operating Temperature | -10°C |
| Upper Operating Temperature | +120°C |
| Basic Reference | Grease |
| EAN code | 7316577745606 |
