PHF FX120-28X50, Metric, Shaft Diameter (mm): 28, EAN code: 7316575554460
| Brand | SKF |
|---|---|
| Mfr Part No. | FX120-28X50 |
| Acorn Code | FX120-28X50-SKF |
| HS Code | 8483 50 20 90 |
| COO | XXX |

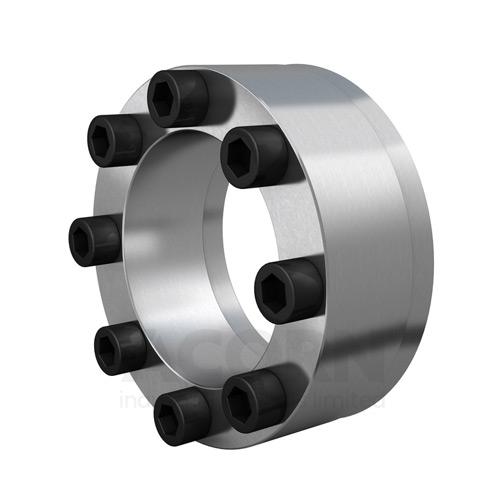

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX120 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.
| Manufacturer Product Code | FX120-28X50 |
|---|---|
| Basic Product Description | FX keyless bushing, FX120 |
| Measurement | Metric |
| UOM | Each |
| Shaft Diameter (mm) | 28 |
| Outer Diameter (mm) | 50 |
| Contact Width (mm) | 12 |
| Element Width (mm) | 18.5 |
| Overall Width (mm) | 24.5 |
| Transmissible Torque (Nm) | 370 |
| Shaft Surface Pressure (N/mm²) | 220 |
| Hub Surface Pressure (N/mm²) | 120 |
| Clamp screws Qty | 8 |
| Clamp screws Size | M6 |
| Screw Tightening Torque (Nm) | 16 |
| Weight (kg) | 0.17 |
| EAN | 7316575554460 |
