Metric, Bearing unit, Composite (Blue), Seal on both sides and flinger on one side, Set screw locking, Food grade grease
| Brand | SKF |
|---|---|
| Mfr Part No. | F3BBC 30M-CPSS-DFH |
| Acorn Code | F3BBC30M-CPSS-DFH-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

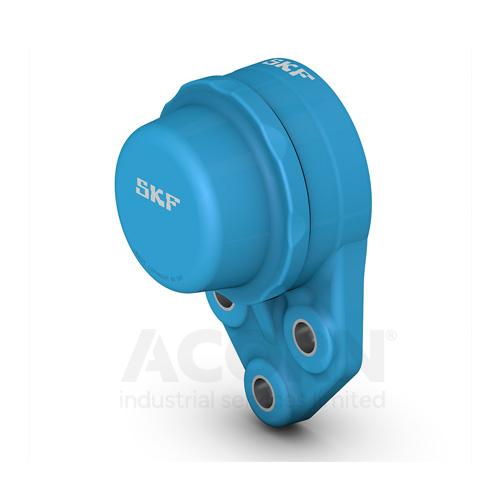

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Chemical resistant
• Lubricated for life with a non-toxic food grade grease
• Lightweight
• Strong
| Manufacturer Product Code | F3BBC 30M-CPSS-DFH |
|---|---|
| Basic Product Description | SKF Foodline - Corrosion resistant 3-bolt bracket flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| Width (mm) | 41.2 |
| Length (mm) | 82 |
| Height (mm) | 140 |
| Weight (Kg) | 0.49 |
| Lubrication | Food grade grease |
| Seals | Seal on both sides and flinger on one side |
| Features | Contact, gutter |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| Bolt Hole Centres (mm) | 47.5 |
| Other | End cover on one side and rubber seal on the other side |
| Bearing Material | Stainless steel |
| Housing Material | Composite (Blue) |
| Bearing/Insert reference | YAS 206-2LP1W/SS |
| Housing reference | F3BBC 506 |
| Dynamic load | 16.3 |
| Static load | 11.2 |
| Max Speed | 3800 |
