Metric, Bearing, 20, 26, 20,
| Brand | SKF |
|---|---|
| Mfr Part No. | HK 2020 AS1 |
| Acorn Code | HK2020AS1-SKF |
| HS Code | 8482 40 00 00 |
| COO | Germany (DE) |

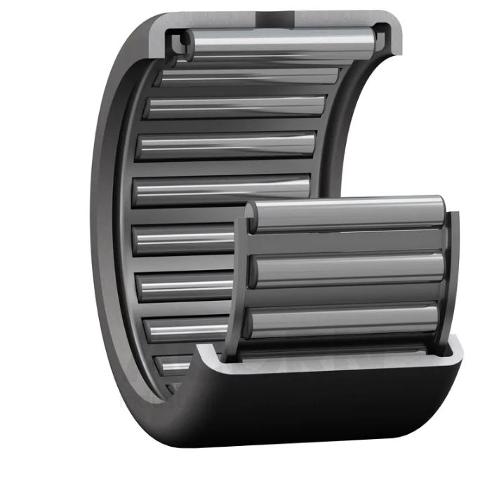

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness. A lubrication hole in the outer ring facilitates relubrication.
• High radial load carrying capacity
• High stiffness
• Very low cross-sectional height
• Relubrication feature
| Manufacturer Product Code | HK 2020 AS1 |
|---|---|
| Basic Product Description | Drawn cup needle roller bearing with open ends and relubrication feature |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 20 |
| od (mm) | 26 |
| Width (mm) | 20 |
| Weight (Kg) | 0.02 |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 15.1 kN |
| Basic static load rating | 26.5 kN |
| Limiting speed | 14000 r/min |
| Reference speed | 12000 r/min |
