22332EMBW33W800C4, Timken, Spherical Roller Bearing
Brass cage, Bearing for vibratory applications, C4 Clearance, EAN code: 0087796262645
$1,722.89
Despatched in 4-5 days
Steel cage, Bearing for vibratory applications, Normal Clearance (Cn), EAN code: 07316570997279
| Brand | SKF |
|---|---|
| Mfr Part No. | 22332 CCJA/W33VA405 |
| Acorn Code | 22332CCJA/W33VA405-SKF |
| HS Code | 8482 30 00 00 |
| COO | Sweden (SE) |

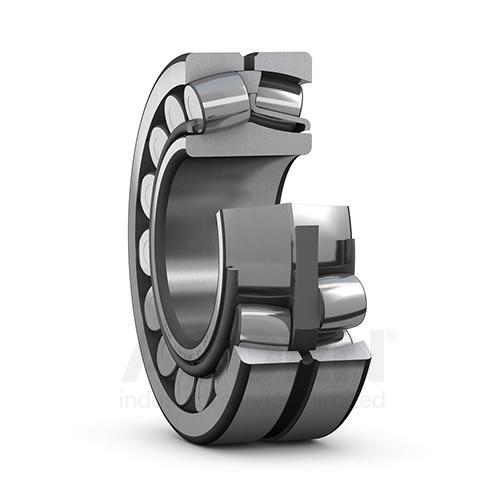

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
• Accommodate misalignment
• High load carrying capacity
• Accommodate very high vibration levels
• Low friction and long service life
• Increased wear resistance
| Manufacturer Product Code | 22332 CCJA/W33VA405 |
|---|---|
| Basic Product Description | Spherical roller bearing for vibratory applications, with relubrication features |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 160 |
| od (mm) | 340 |
| Width (mm) | 114 |
| Weight (Kg) | 49.1 |
| Sealing | Open (No seal) |
| Features | Lubrication holes and groove in outer ring |
| Bore Type | Parallel bore |
| Clearance | Normal Clearance (Cn) |
| Cage design | Stamped steel (Surface hardened) |
| Contact Angle | Guide ring centred on the outer ring |
| Accuracy | Normal |
| Other Variations | Bearing for vibratory applications |
| Cage material | Steel cage |
| Basic dynamic load rating | 1680 kN |
| Basic static load rating | 1960 kN |
| Limiting speed | 1900 r/min |
| Reference speed | 1500 r/min |
| EAN-Code | 07316570997279 |
Brass cage, Bearing for vibratory applications, C4 Clearance, EAN code: 0087796262645
