BS, Steel, Pilot Bore Sprocket, EAN code: 07316572634554
| Brand | SKF |
|---|---|
| Mfr Part No. | PHS 16B-2B38 |
| Acorn Code | 16B-2B38-SKF |
| HS Code | 8483 90 20 90 |
| COO | China (CN) |

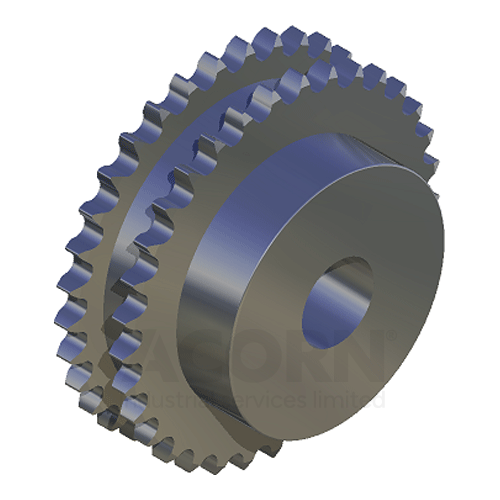

Duplex sprocket with single hub and rough stock bore, European standards (EN)
Sprockets are available in many sizes, to fit a variety of design solutions. These duplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft.
As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.
• Manufactured according to international global standards
• Made from high-grade steel and carbon steel
| Manufacturer Product Code | PHS 16B-2B38 |
|---|---|
| Basic Product Description | Pilot Bore Sprocket |
| Standard BS/ANSI | BS |
| UOM | Each |
| Tooth Pitch (ANSI) Inch | 1 |
| No. Teeth | 38 |
| Pitch Diameter (mm) | 307.59 |
| Bore max (mm) | 75 |
| Bore min (mm) | 25 |
| Hub Size (mm) | 140 |
| Hub diameter (mm) | 140 |
| Width (mm) | 70 |
| Weight (Kg) | 27.555 |
| Bore Type | Pilot Bore |
| No. Teeth Rows | Duplex - 2 Row |
| Material | Steel |
| EAN | 07316572634554 |
BS, Steel, Pilot Bore Sprocket
This item is not currently available from our stocks.
Despatch date information is on request.
