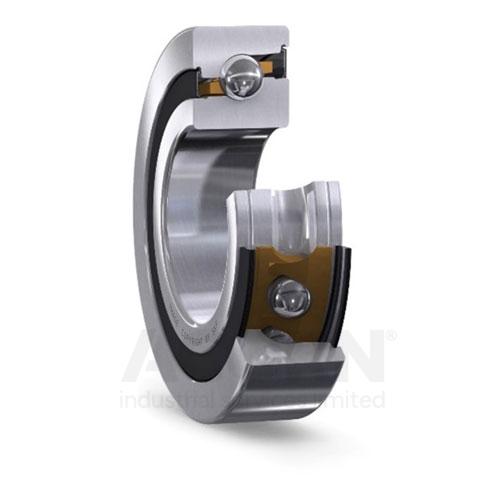

Bearing, Bearing steel, Sheet steel reinforced low friction seal of acrylonitrile-butadiene rubber (NBR) on both sides of the bearing, None, 62° Contact angle, EAN code: 7316574503148
| Brand | SKF |
|---|---|
| Mfr Part No. | BSA 202 CG23-2RZ |
| Acorn Code | BSA202CG23-2RZ-SKF |
| HS Code | 8482 10 90 30 |
| COO | XXX |
These sealed super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low.
• Very high running accuracy
• High axial stiffness
• High axial load carrying capacity in one direction
• Universally matchable
• Well suited for screw drive applications
| Manufacturer Product Code | BSA 202 CG23-2RZ |
|---|---|
| Basic Product Description | Single direction angular contact thrust ball bearing |
| UOM | Each |
| id (mm) | 15 |
| od (mm) | 35 |
| Width (mm) | 11 |
| Weight (Kg) | 0.0484 |
| Sealing | Sheet steel reinforced low friction seal of acrylonitrile-butadiene rubber (NBR) on both sides of the bearing |
| Locating feature, bearing outer ring | None |
| Contact Angle | 62° Contact angle |
| Cage material | Polymer cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 12.7 |
| Basic static load rating | 25.5 |
| EAN | 7316574503148 |
