Bearing, Bearing steel, Seal on both sides, Bolt holes, 60° Contact angle, EAN code: 7316577781659
| Brand | SKF |
|---|---|
| Mfr Part No. | BEAM 030100 C-2RSH |
| Acorn Code | BEAM030100C-2RSH-SKF |
| HS Code | 8482 10 90 30 |
| COO | XXX |

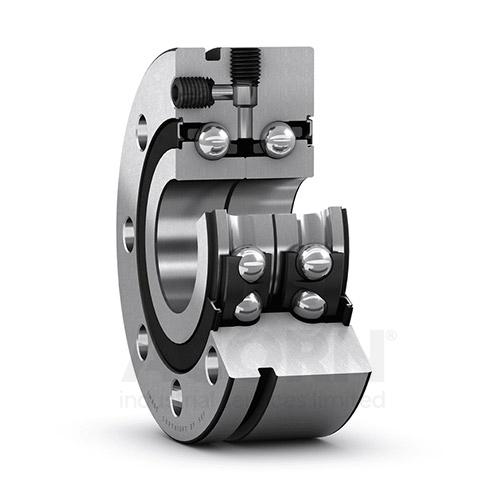

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft.The BEAM series bearings have an outer ring that is much thicker then with the BEAS series, and they are equipped with through holes for attachment bolts, which makes the mounting process simple.
• Accommodate radial loads, and axial loads in both directions
• Greased and sealed as standard
• Ready to mount
• Easy to relubricate
| Manufacturer Product Code | BEAM 030100 C-2RSH |
|---|---|
| Basic Product Description | Double direction angular contact thrust ball bearings for bolt mounting |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 100 |
| Width (mm) | 38 |
| Weight (Kg) | 1.707 |
| Sealing | Seal on both sides |
| Locating feature, bearing outer ring | Bolt holes |
| Contact Angle | 60° Contact angle |
| Precision Grade | Super Precision |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 64 |
| Basic static load rating | 118 |
| EAN | 7316577781659 |
