EAN code: 7316570605341
| Brand | SKF |
|---|---|
| Mfr Part No. | CMSS 793L |
| Acorn Code | CMSS793L-SKF |
| HS Code | 8482 99 00 90 |
| COO | United States (US) |

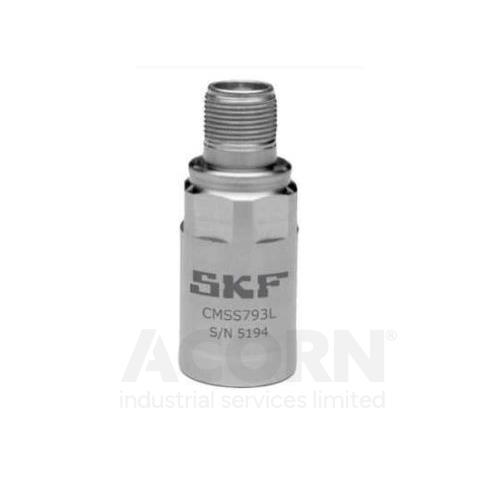

The CMSS 793L is an industrial accelerometer for higher precision measurements at rotational frequencies as low as 12 r/min. These speeds are most commonly found in the following industries:
• Power Generation (Wind Turbines)
• Pulp and Paper
• Petrochemicals
Applications include rotors, rolls and extruders. The CMSS 793L combines high sensitivity (to reveal low amplitude signals) with a narrow band of frequency response. The value of the high-pass filtering within the sensor makes it ideal for use in specialized, low speed analysis tasks using portable instruments or at specific measurement points on on-line systems. However, the low-pass filtering makes the CMSS 793L unsuitable as a general purpose accelerometer for rolling element bearing defect detection at more normal rotational speeds.
Features
• Optimal for use with SKF on-line surveillance and protection systems and all portable data collection instruments
• 500 mV/g high sensitivity
• Ultra low-noise electronics for clear signals at very low vibration levels
• Low-pass filtered to attenuate high frequencies
• Hermetically sealed
• ESD protection
• Reverse wiring protection
Recommended connector/cable assembly: CMSS 942 series
| Manufacturer Product Code | CMSS 793L |
|---|---|
| Basic Product Description | Low frequency accelerometer, straight exit (XDCR,ACCL,LO FREQ) |
| Weight (Kg) | 0.14 |
| EAN | 7316570605341 |
