CF6BR, IKO, Metric Cam Follower
Track roller, M6X1
$14.78
Despatched in 4-5 days
Stud-type track roller, Crowned, M6x1, EAN code: 07316577011367
| Brand | SKF |
|---|---|
| Mfr Part No. | KR 16 |
| Acorn Code | KR16-SKF |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |

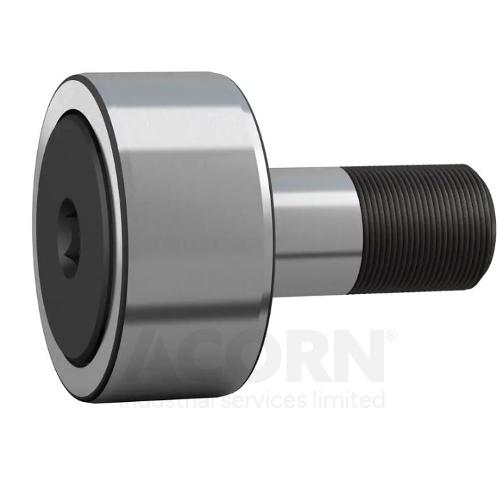

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated via the stud.
• High radial load carrying capacity
• Accommodate axial loads due to skew or tilting
• Long service life
• Easy to mount
• Sealed for increased reliability, with relubrication feature
| Manufacturer Product Code | KR 16 |
|---|---|
| Basic Product Description | Cam follower with relubrication feature |
| UOM | Each |
| id (mm) | 6 |
| od (mm) | 16 |
| Width (mm) | 28 |
| Thread | M6x1 |
| Weight (Kg) | 0.021 |
| Outer ring profile | Crowned |
| Relubrication feature | Centre of stud head |
| Bearing Material | Bearing Steel |
| Load Ratings C (n) | 2.92 |
| Load Ratings C0 (N) | 3.1 |
| Limiting speed | 6000 |
| EAN code | 07316577011367 |
Track roller, M6X1
