Mechanical Jaw Pullers, EAN code: 7316572464748
| Brand | SKF |
|---|---|
| Mfr Part No. | TMMA 120 |
| Acorn Code | TMMA120-SKF |
| HS Code | 8482 99 00 90 |
| COO | Hungary (HU) |

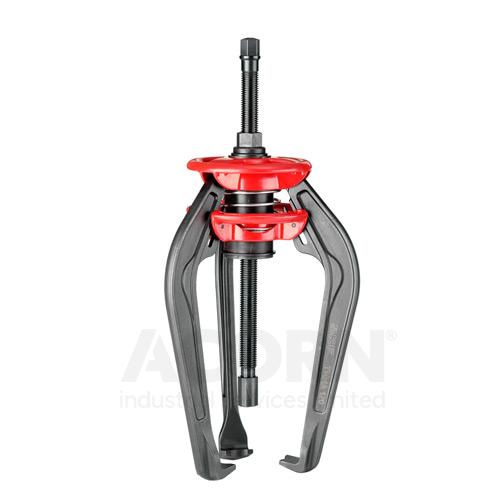

The SKF EasyPull TMMA 120 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 120 is mechanically operated and capable of withdrawl forces up to 120 kN for components with a maximum outer diameter of 250 mm (9.8 in).
• Unique red rings spring-operated opening mechanism allow the TMMA 120 to be placed behind the component with just one movement
• Self-centring capability and nosepiece help to avoid damage to shaft
• Self-locking arms help to prevent puller slipping under load
• Sturdy design allows safe dismounting of components in the tightest applications
• Hydraulic force generators TMHS 100 available as an accessory
| Manufacturer Product Code | TMMA 120 |
|---|---|
| Basic Product Description | SKF EasyPull Mechanical puller |
| UOM | Each |
| Weight (Kg) | 12 |
| Claw Height | 13.8 mm |
| Adapter to upgrade to hydraulic version | TMHS 100 |
| Effective arm length/Reach | 250 mm |
| Maximum withdrawal force (kN) | 120 kN |
| Puller Type or Accessories | Mechanical Jaw Pullers |
| Series | TMMA |
| EAN code | 7316572464748 |
